Description
Description
Manufacturer
PCTEL
Product Description

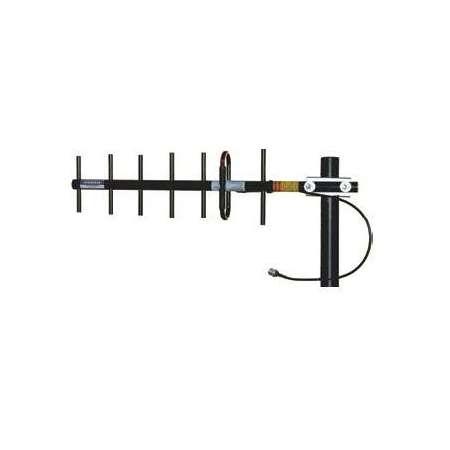

890-960 MHz 10 dBd 7 Element Yagi Antenna
Product Narrative
PCTEL's BGYD890K Yagi antenna is engineered to provide high gain broadband performance between the frequencies of 890 – 960 MHz. Directional antenna features aluminum elements and a fully welded dipole on the boom. This Yagi antenna is a seven-element black powder coated over stainless steel antenna assembly. The maximum power input is 200 W. The antenna has a low loss 2 ft RG213 feed with an N Female connector.
A high strength mounting clamp is supplied for vertical or horizontal polarization.
A high strength mounting clamp is supplied for vertical or horizontal polarization.
Item Weight
2 lb
Type of Jumper Included
2 Ft. (RG213)
Horizontal Beamwidth
56 deg
Gain dBd
10 dBd
Item Length
24 in
RF Connectors
N Female
Gain dBi
12.1 dBi
Connector Placement
Pigtail
Polarization
Linear
Vertical Beamwidth
46 deg
Jumper Included
Yes
Maximum Power
200 W
Maximum Rated Wind Velocity
125 mile/h
Maximum VSWR
1.7:1
Type of Hardware Included
BWC1022 Pipe Mount
Item Height
6.8 in
Specific Frequency
890-960 MHz
