Description
Description
Manufacturer
Ventev
Product Description

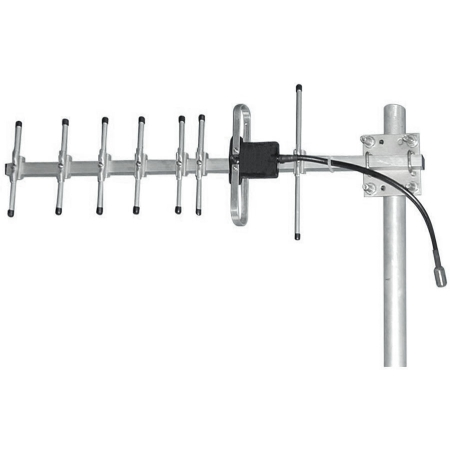

824-960 MHz 11 dBi Directional Antenna
Product Narrative
11 dBi directional Yagi antenna is designed for applications in the 900 MHz frequency, including, radio frequency identification (RFID) applications, cellular systems, global system for mobile (GSM) communications, code-division multiple access systems (CDMA) applications, point-to-multipoint applications and wireless video links. It features a high gain and can be mounted in a horizontal or vertical polarization. Includes heavy-duty steel mounting brackets and an N-style jack connector. Ventev antennas are covered by the company's 2-year warranty.
RF Connectors
N Female
Gain dBd
8.86 dBd
Maximum Rated Wind Velocity
120 mile/h
Item Weight
2 lb
Maximum Power
100 W
Specific Frequency
824-960 MHz
Vertical Beamwidth
40 deg
Connector Placement
Pigtail
Jumper Included
Yes
Gain dBi
11 dBi
Type of Jumper Included
12" Pigtail
Item Length
24 in
Maximum VSWR
1.5:1
Polarization
Linear
Type of Hardware Included
1.5"-2" Mast Mount
Horizontal Beamwidth
48 deg
