Manufacturer
Ventev / TerraWave
Product Description

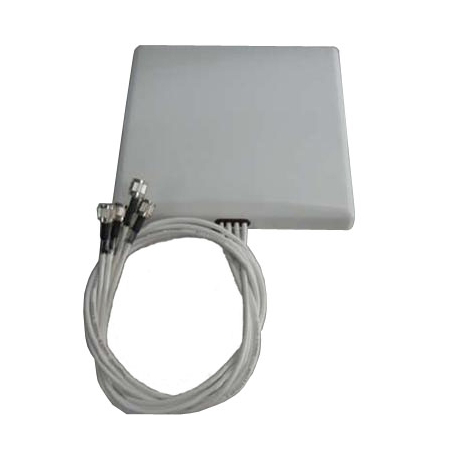

2.4/5GHz 6 dBi Directional WiFi Antenna 4 RPTNC
Product Narrative
VENTEV's TerraWave 2.4/5 GHz, 6 dBi high density MIMO directional Wi-Fi antenna is designed to operate with any manufacturer's four-lead 802.11ac Waves I and II WLAN access points. The antenna's gain and directional beams deliver on the modern user demand for high capacity connectivity. An articulating mount enables the antenna to be pointed precisely where coverage is most needed and comes with mounting hardware to support mast and / or wall mounting. Every TerraWave antenna is ROHS compliant and is covered by Ventev’s two-year TerraNet warranty program. For more information, contact a regional sales executive at 210-375-8482, 800-851-4965 or sales@terrawave.com, or visit www.terrawave.com.
Polarization
Vertical
RF Connectors
RP TNC Male
Maximum Rated Wind Velocity
134 mile/h
Maximum Power
100 W
Gain dBi
4 dBi, 6 dBi
Item Length
1.1 in
Item Weight
2.65 lb
Item Width
9 in
Electrical Downtilt
Fixed
Item Height
9.2 in
Jumper Included
Yes
Minimum Front Back Ratio
18 dB
Maximum VSWR
2.0:1, 2.5:1
Horizontal Beamwidth
45 deg, 80 deg
Gain dBd
3.85 dBd, 1.85 dBd
Specific Frequency
5150-5850 MHz, 2400-2500 MHz
