Manufacturer
Ventev / TerraWave
Product Description

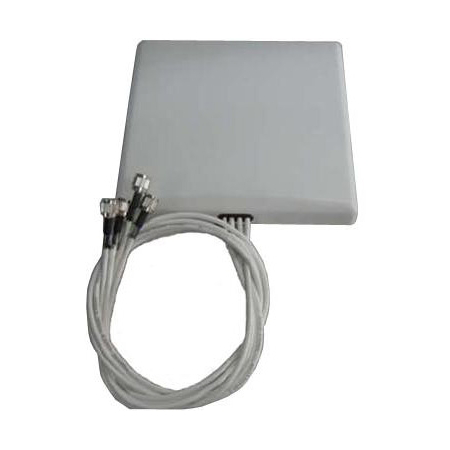

2.4/5 GHz 6 dBi Directional WiFi Antenna 6 RPSMA
Product Narrative
Ventev's 2.4/5 GHz 6-lead patch Wi-Fi antenna is designed to operate with many manufacturers' enterprise-class access points (APs). The antenna has 6 RPSMA Plug connectors, 36" cables and an articulating mount. With dual-band leads, each cable supports both 2.4 and 5 GHz, making it an ideal antenna to support demanding indoor or outdoor wireless communication systems. The antenna radome is designed to withstand challenging environments where this is exposure to moisture and dust. The articulating mount allows for multiple mounting options on either a wall or a mast/pole.
RF Connectors
RP SMA Male
Polarization
Vertical
Maximum Rated Wind Velocity
134 mile/h
Maximum Power
100 W
Gain dBi
6 dBi, 6 dBi
Item Length
1.1 in
Item Weight
2.65 lb
Item Width
9 in
Electrical Downtilt
Fixed
Item Height
9.2 in
Jumper Included
Yes
Minimum Front Back Ratio
18 dB
Maximum VSWR
2.0:1, 2.5:1
Horizontal Beamwidth
80 deg
Gain dBd
3.86 dBd, 3.86 dBd
Specific Frequency
5100-5850 MHz, 2400-2500 MHz
