Manufacturer
Ventev / TerraWave
Product Description

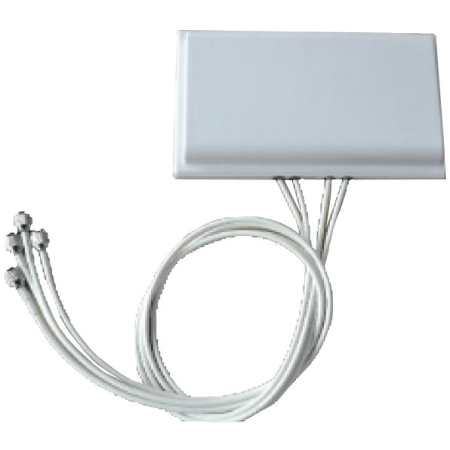

802.11n/ac Quad Patch Antenna
Product Narrative
VENTEV's TerraWave 2.4/5 GHz, 6 dBi high density MIMO directional Wi-Fi antenna is designed to operate with Cisco's latest 802.11ac Waves I and II WLAN access points. The antenna's gain and directional beam delivers on the modern user demand for high capacity connectivity. Four (4) dual-band leads deliver exceptional performance while simplifying connection to the access point. An articulating mount enables the antenna to be pointed precisely where coverage is most needed and comes with mounting hardware to support mast and / or wall mounting. Every TerraWave antenna is ROHS compliant and is covered by Ventev’s two-year TerraNet warranty program. For more information, contact a regional sales executive at 210-375-8482, 800-851-4965 or sales@terrawave.com, or visit www.terrawave.com.
Polarization
Vertical
Maximum Power
20 W
Item Weight
2.22 lb
Item Length
13 in
Gain dBi
6 dBi
Item Width
10 in
Item Height
4 in
Jumper Included
Yes
Type of Jumper Included
(4) 36" pigtails with RPTNC Plug (F)
Horizontal Beamwidth
125 deg, 105 deg
Specific Frequency
5150 - 5850 MHz, 2400 - 2500 MHz
