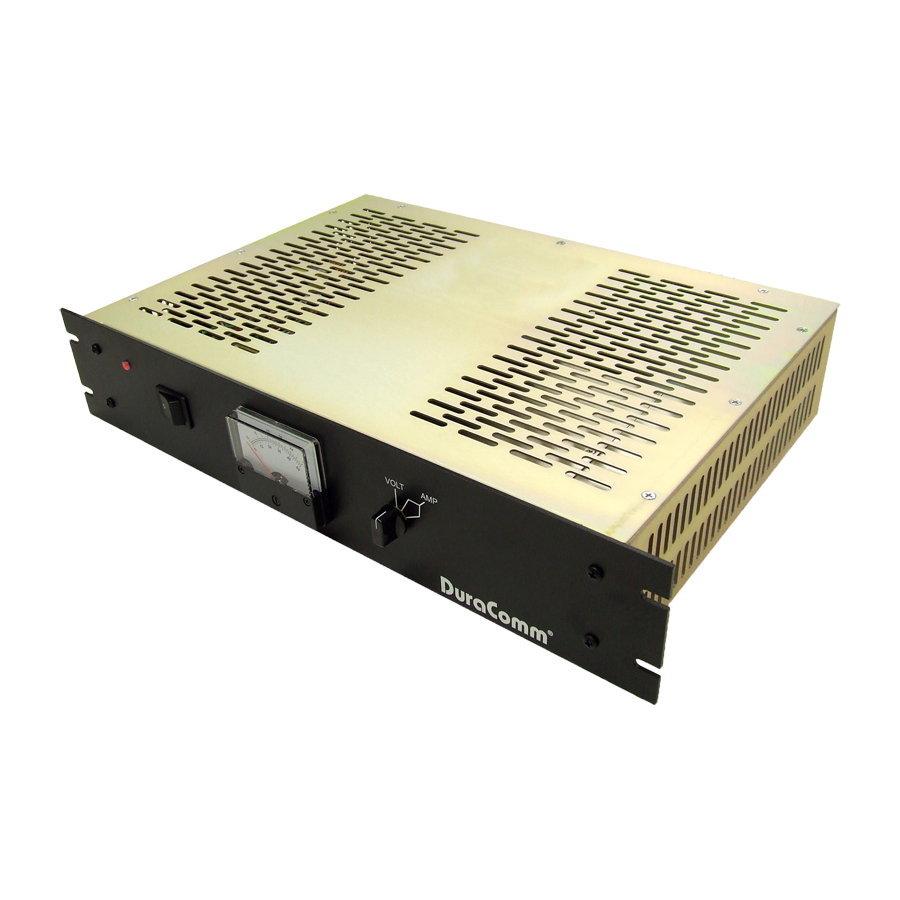

DuraComm BMS-360-24-MU

The BMS-360-24-MU is a battery management system with built-in remote monitoring and control. BMS-360(2RU) models include a front panel indicator for power supply unit and a front panel meter for battery voltage and charging current.

The Model BMS-360-24-MU incorporates an automatic Low Voltage Disconnect that monitors battery voltage and disconnects the load when the battery voltage drops below 20 VDC. The LVD has been adjusted and calibrated at the factory for correct voltage disconnect and re-connect. No adjustment is required.

The new internal Remote Monitoring and Control Unit (RMCU), provides the ability to remotely monitor the AC voltage, power supply current and voltage, battery voltage and current, and internal temperature, as well as the ability to remotely control the ON/OFF State of the power supply unit, all via the internet using any standard web browser. A mobile-friendly version of the status page is also included.

Users that have access to the network can view the status of the power supply, control outputs, and the alarm conditions, as well as download a .CSV file of logged states. Administrative users can access the setup screens and change the control settings by logging into the RMCU via the browser. Alarm conditions are configurable, and can include over and under thresholds. Alarm notifications can be configured by an administrator to send email and SNMP traps. Setups are saved in non-volatile RAM, and a battery backed up real-time clock is provided to timestamp information logged to the internal SD card. Logging rate is user settable.
