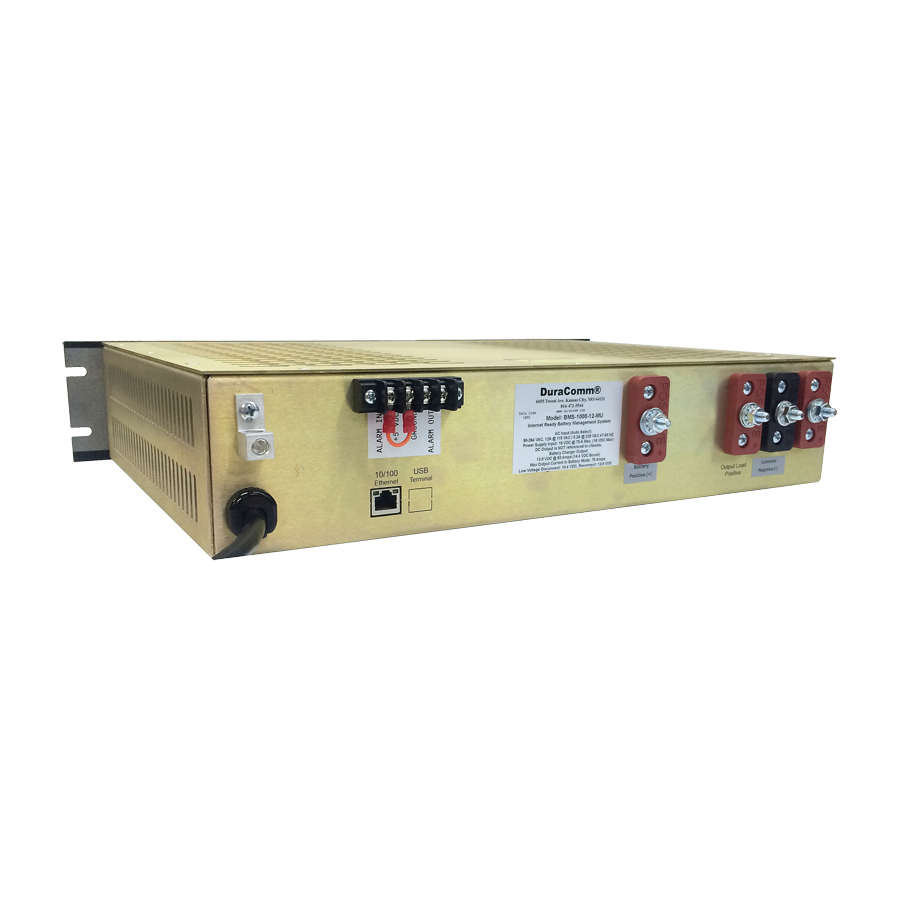

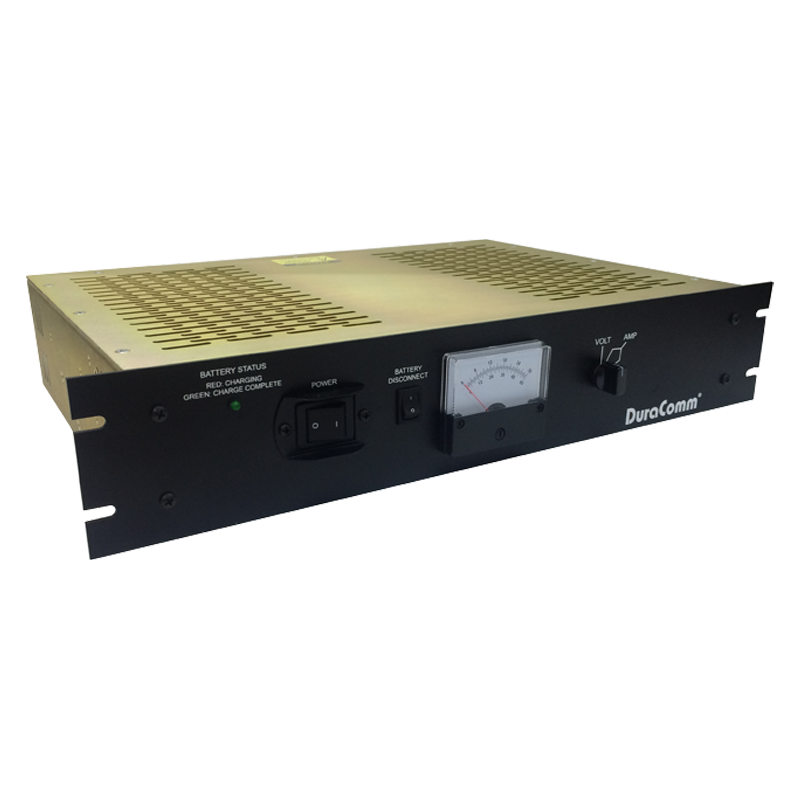

DuraComm BMS-1000-48-MU

The BMS-1000-48-MU is a rack-mount internet-ready battery management system. It includes an intelligent battery charger that comes with a built-in Active Power Factor Correction and is microprocessor controlled. The BMS-1000-48-MU also comes with three layers of protection for short circuit, over load, over voltage, and over temperature.

The new internal Remote Monitoring and Control Unit (RMCU), provides the ability to remotely monitor the AC voltage, internal temperature, power supply current, power supply voltage, charger current, and charger voltage, as well as the ability to remotely control the ON/OFF state of the charger and an external alarm output, all via the internet using any standard web browser. A mobile friendly version of the status page is also included.
Users that have access to the network can view the status of the power supply, control outputs, and the alarm conditions, as well as download a .CSV file of logged states. Administrative users can access the setup screens and change the control settings by logging into the RMCU via the browser. Alarm conditions are configurable, and can include over and under thresholds. Notifications via email can also be configured to notify an administrator. Setups are saved in non-volatile RAM, and a battery backed up real-time clock is provided to timestamp information logged to the internal SD card. Logging rate is user settable.

The BMS-1000-48-MU comes with the DuraComm three-year warranty.
