Manufacturer
DuraComm
Product Description

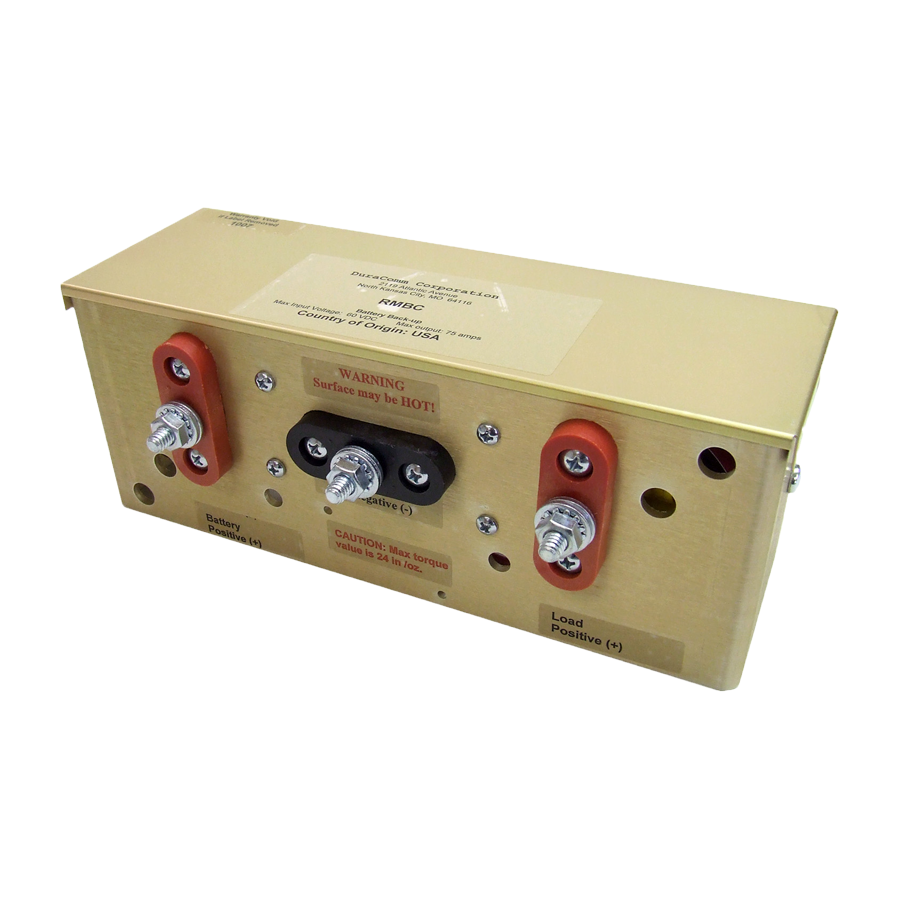

Designed to custom mount on the rear panel of RM Series power supplies to provide a solid-state battery backup system
Product Narrative
RMBC and RMBB combine with RM series power supplies to provide solid state battery backup operation. They can handle up to 75 amps continuous and up to 60 VDC input. RMBC and RMBB are automatically provides float charge, battery maintenance when power is restored.
Input Range VDC:
12-60
Suggested Battery Capacity:
Variable
Output Current to Battery @ 13.8 VDC (Amps):
1-3 Amps
Output Current to Battery @ 27.5 VDC (Amps):
1-3 Amps
Output Current to Battery @ 55.2 VDC (Amps):
1-2 Amps
Amps (Max):
75
Weight (lbs):
1.75
Dimensions:
3.65"H x 5.62"W x 4"D
