Manufacturer
DuraComm
Product Description

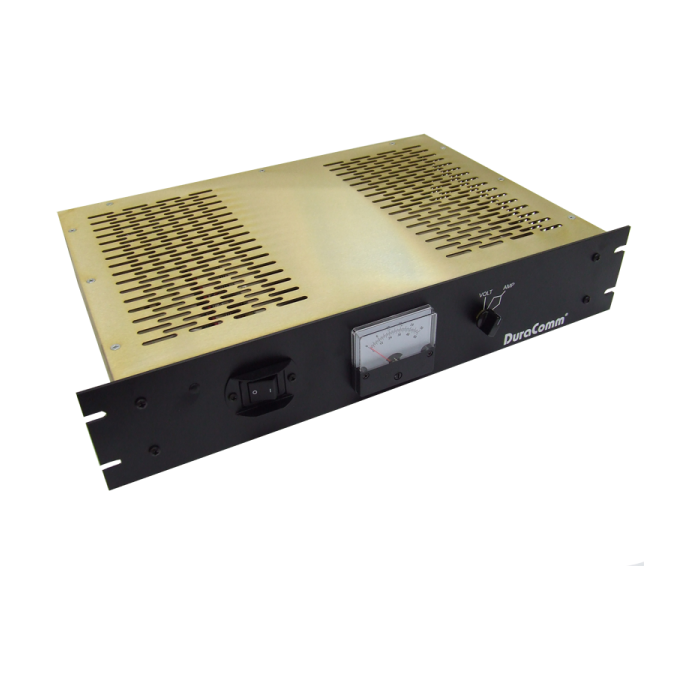

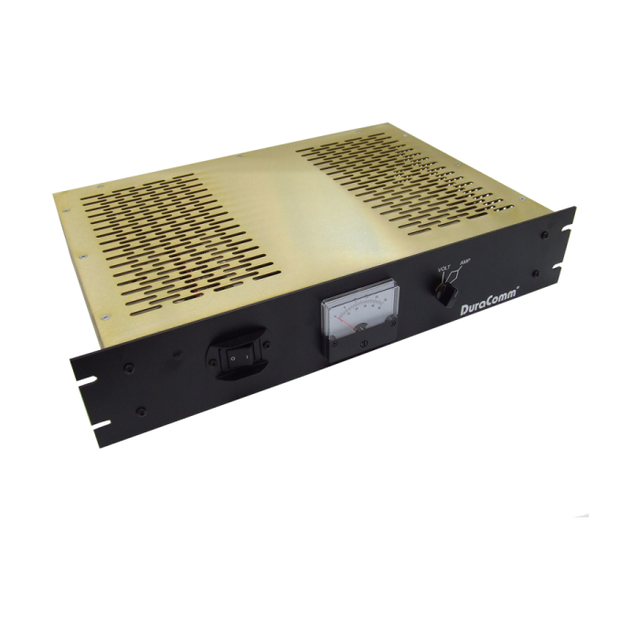

Rack Mount 1+1 Passive Redundancy Model, 40 Amps, 22-29VDC
Product Narrative
The RLP-4024 comes with a built-in meter that can monitor voltage and amperage by simply switching the Knob that is located to the right of the display (Note: the RLP-4024 can only monitor one input at a time). Along with a metered display the RLP comes with remote sense and remote control. The RLP-4024 has auto ranging input voltage from 100 to 260 VAC and comes with four layers of protection short circuit, overload, over voltage, and over temperature.
Output Current (Amps):
40
Output Voltage VDC:
22-29
Input Voltage VAC:
100-260
RC & DC-OK:
NO
Suggested Battery Capacity:
N/A
Panel Height:
3.5"
Weight (lbs):
21
Dimensions:
3.5"H x 19"W x 13"D
