Manufacturer
DuraComm
Product Description

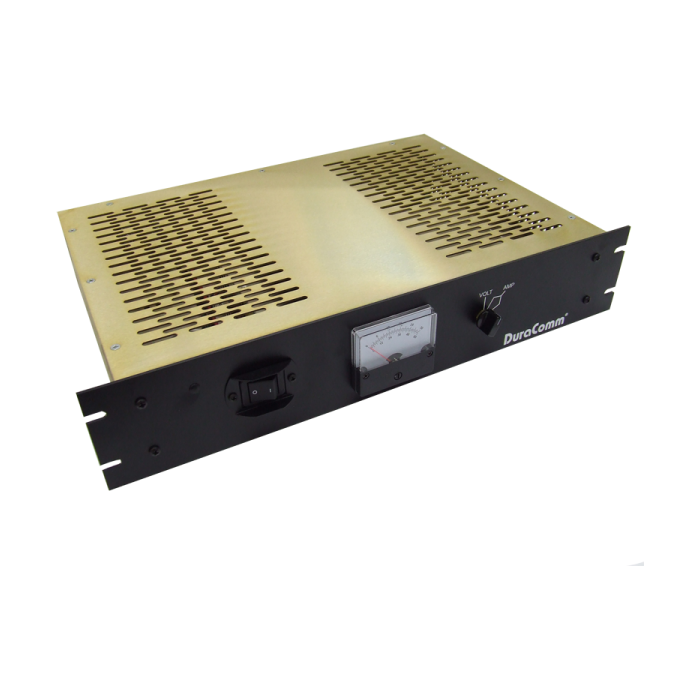

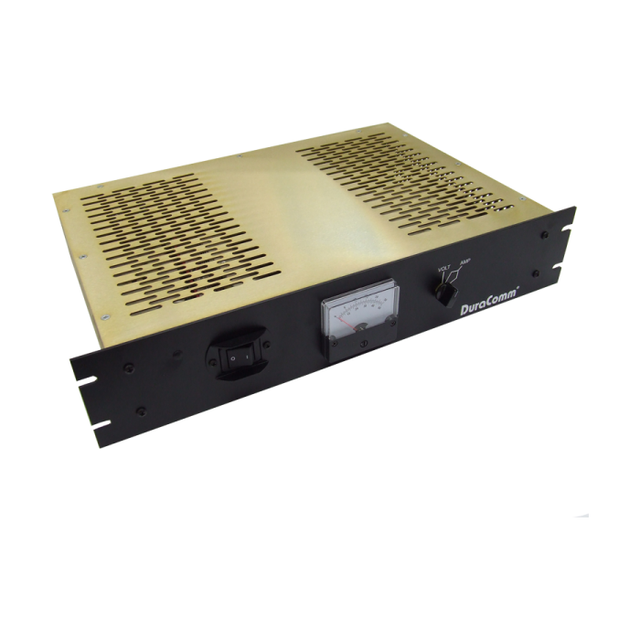

Rack Mount 1+1 Passive Redundancy Model, 20 Amps, 46-56VDC
Product Narrative
The RLP-2048 comes with a built-in meter that can monitor voltage and amperage by simply switching the Knob that is located to the right of the display (Note: the RLP-2048 can only monitor one input at a time). Along with a metered display the RLP comes with remote sense and remote control. The RLP-2048 has auto ranging input voltage from 100 to 260 VAC and comes with four layers of protection short circuit, overload, over voltage, and over temperature.
Output Current (Amps):
20
Output Voltage VDC:
46-56
Input Voltage VAC:
100-260
RC & DC-OK:
NO
Suggested Battery Capacity:
N/A
Panel Height:
3.5"
Weight (lbs):
21
Dimensions:
3.5"H x 19"W x 13"D
