Description
Description
Manufacturer
DuraComm
Product Description
2.4kW Heavy Duty Rack Mount Power Supply with Meter, 50 Amps, 48 VDC
Product Narrative

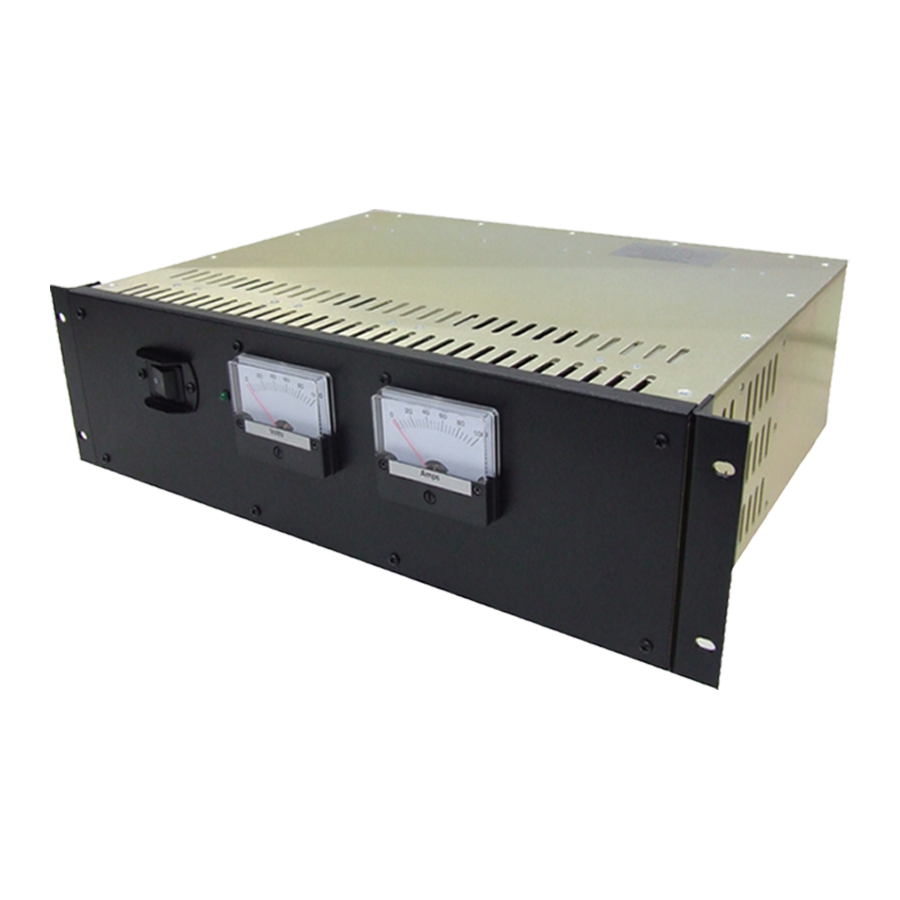

The RLP-5048M power supply has 2400 watts of output power at 80 percent efficiency. The RLP can operate at -20 C to +60 C with short circuit, overload, over voltage and over temperature protection. This model is usable in positive or negative ground applications. The input voltage for the RLP-5048M models is 220 VAC only. The 2.4kW Heavy Duty Rack Mount Power Supply comes with two meter displays, the far left for voltage and the right for amperage.
Output Current (Amps):
50
Output Voltage VDC:
48
Input Voltage VAC:
180-264
N+1:
NO
Suggested Battery Capacity:
N/A
Meters:
YES
Panel Height:
5.25"
Weight (lbs):
21
Dimensions:
5.25"H x 19"W x 13"D
