Description
Description
Manufacturer
DuraComm
Product Description

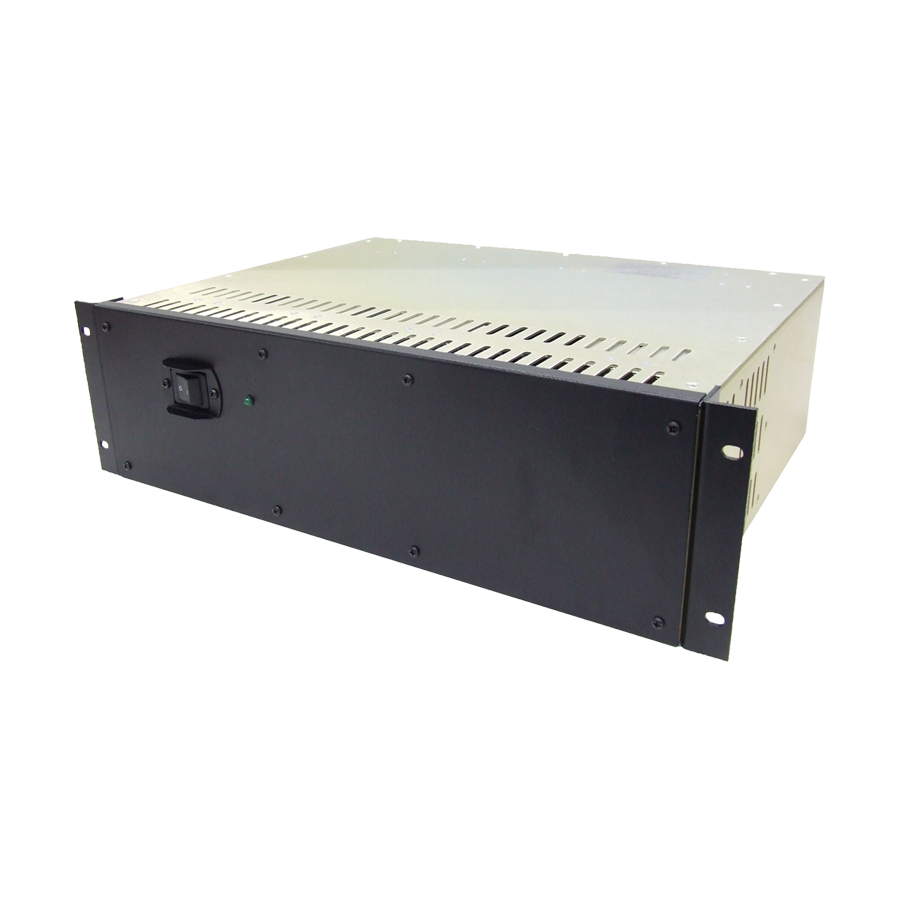

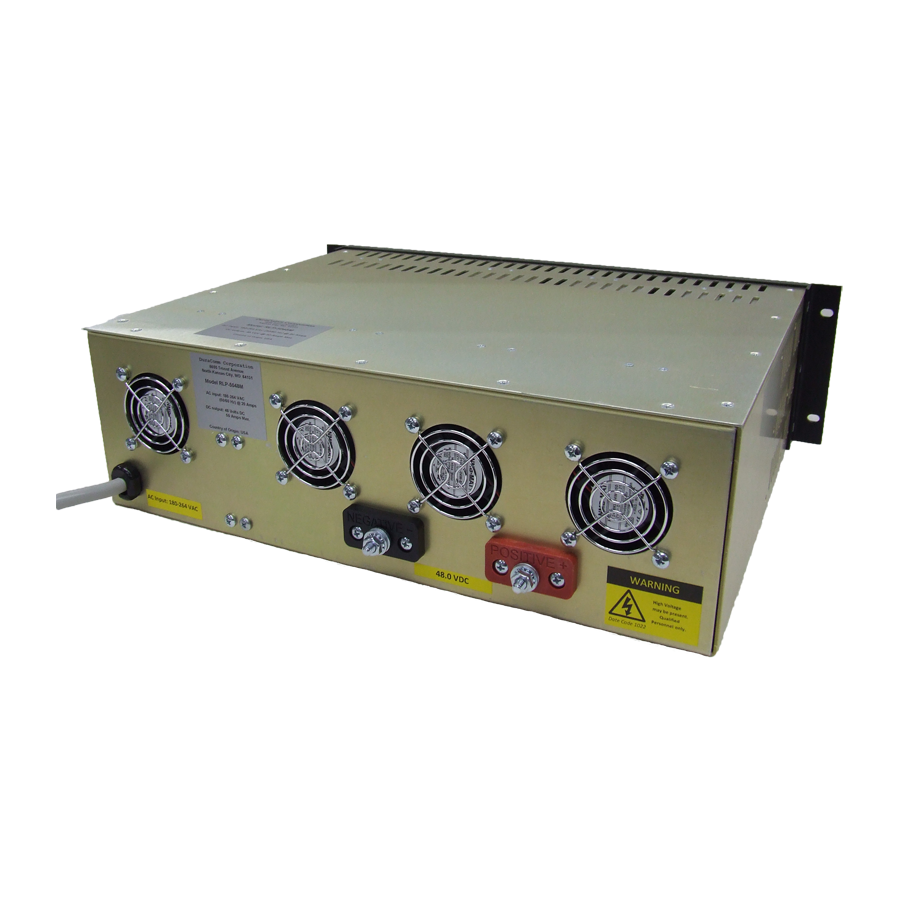

3kW Heavy Duty Rack Mount Power Supply with Meter, 60 Amps, 48 VDC
Product Narrative
The RLP-6048 has a power factor correction of 0.95 and 3000 watts of output power at 90 percent efficiency. The RLP can operate at -20 C to +70 C with short circuit, overload, over voltage and over temperature protection. This model is usable in positive or negative ground applications with 1500 watt N+1 redundancy. The input voltage for the RLP-6048 models 220 VAC only. The 3kW Heavy Duty Rack Mount Power Supply comes with two meter displays, the far left for voltage and the right for amperage.
Output Current (Amps):
60
Output Voltage VDC:
48
Input Voltage VAC:
180-260
N+1:
YES
Suggested Battery Capacity:
N/A
Meters:
NO
Panel Height:
5.25"
Weight (lbs):
31
Dimensions:
5.25"H x 19"W x 14"D
