Description
Description
Manufacturer
DuraComm
Product Description

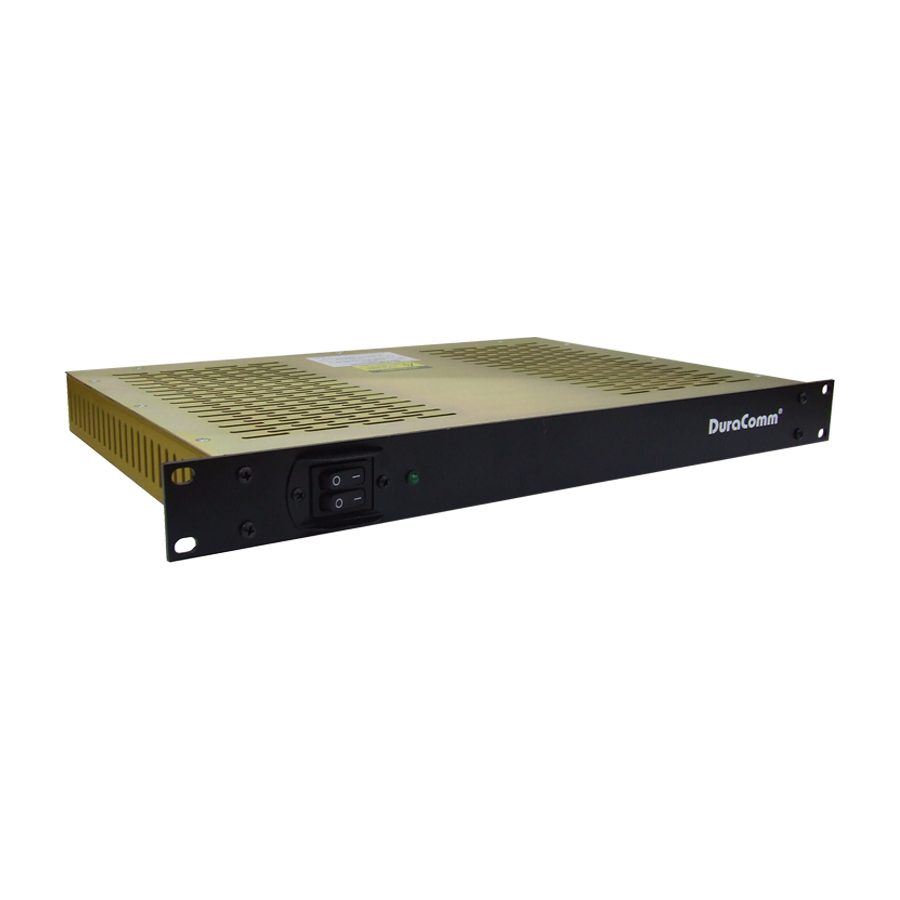

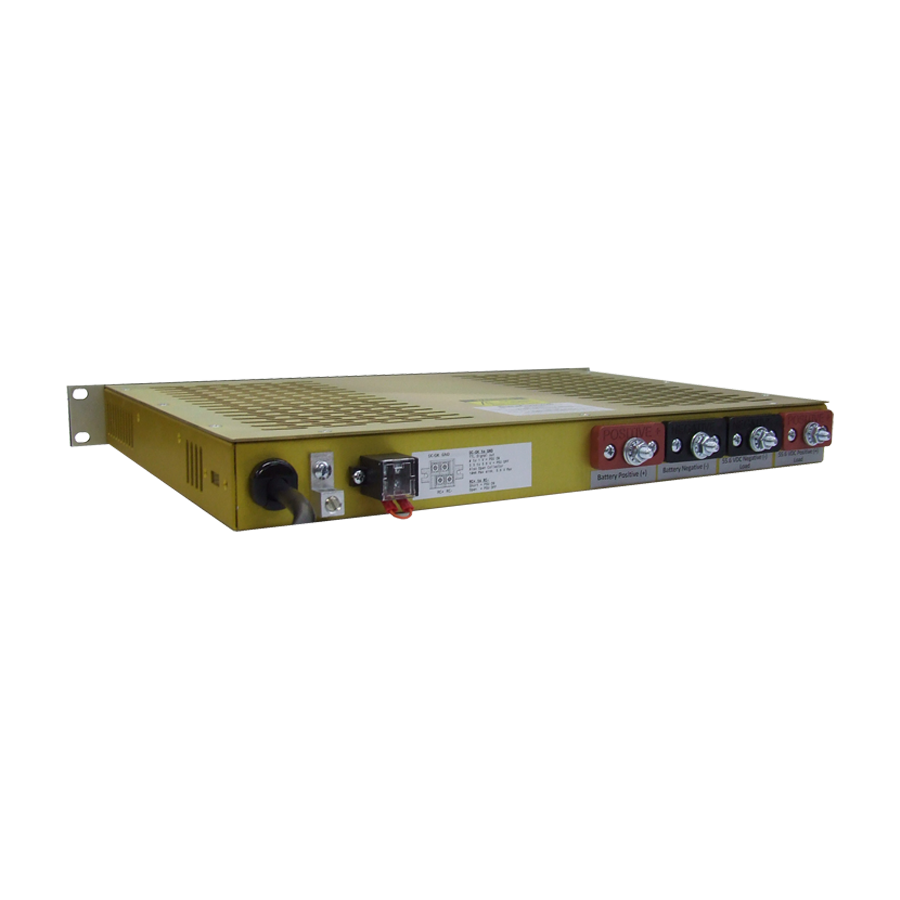

Heavy Duty AC to DC 750 Watt Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis
Product Narrative
The HE1U-1248-BMS is a Heavy Duty AC to DC 750 Watt Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis. The HE1U-1248-BMS comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. This model also comes with a manual battery disconnect switch, internal power supply ON/OFF remote control, and DC-OK. The HE1U-1248-BMS comes with a 3 year warranty.
Output Current (Amps):
12
Output Voltage VDC:
56
Input Voltage VAC:
110 or 220
Charging Current Amps:
2.2
DC-OK:
YES
Disconnect / Reconnect VDC:
42 / 50
Suggested Battery Capacity:
15-30 Ah
Panel Height:
1.75"
Weight (lbs):
8.4
Dimensions:
1.75"H x 19"W x 14"D
