Description
Description
Manufacturer
DuraComm
Product Description

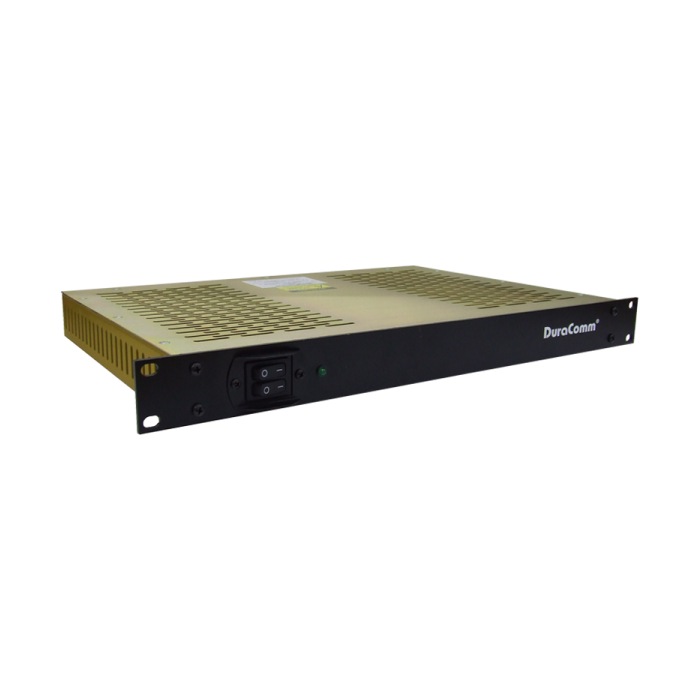

Heavy Duty AC to DC 1600 Watt Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis
Product Narrative
The HE1U-5024-BBLVD is a Heavy Duty AC to DC 1500 Watt Power Supply with a low voltage disconnect in a 1U chassis. The HE1U-5024-BBLVD comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. This model also comes with a manual battery disconnect switch, and power supply DC-OK for each module. The HE1U-5024-BBLVD comes with a 3 year warranty.
Output Current (Amps):
50
Output Voltage VDC:
27.5
Input Voltage VAC:
90 to 264
Charging Current Amps:
N/A
DC-OK:
YES
Disconnect / Reconnect VDC:
21.5 / 25.5
Suggested Battery Capacity:
30-60 Ah
Weight (lbs):
12.0
Battery Disconnect Switch:
YES
