Manufacturer
DuraComm
Product Description

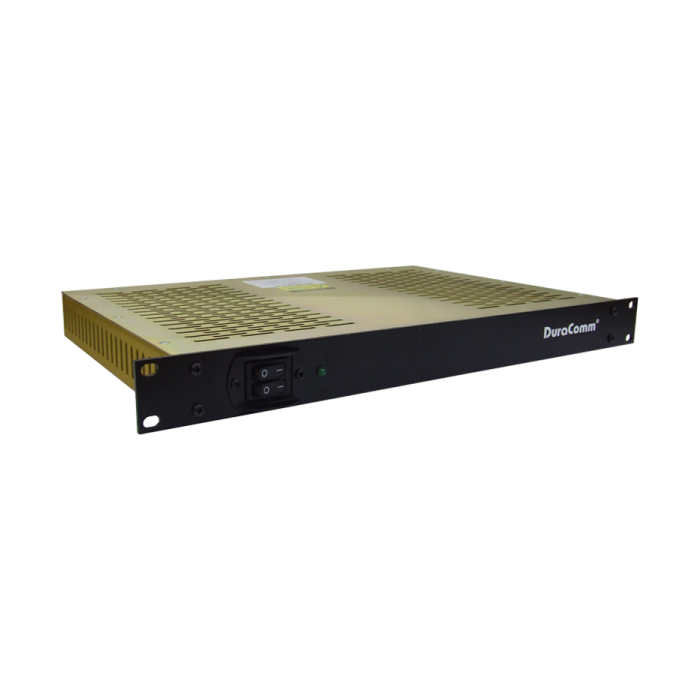

Heavy Duty AC to DC 1600 Watt Power Supply with low voltage disconnect in a 1U chassis w/ addition of integrated seamless battery backup
Product Narrative
The HE1U-2548-BBLVD is a Heavy Duty AC to DC 1500 Watt Power Supply in a 1U chassis. The HE1U-2548-BBLVD comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. The internal power supply has ON/OFF remote control, and DC-OK connected to the HE1U-2548-BBLVD rear terminal strip. The HE1U-2548-BBLVD comes with a 3 year warranty.
Output Current (Amps):
25
Output Voltage VDC:
48
Input Voltage VAC:
90 to 264
Charging Current Amps:
N/A
DC-OK:
YES
Disconnect / Reconnect VDC:
42.0 / 50.0
Suggested Battery Capacity:
N/A*
Weight (lbs):
12.0
Battery Disconnect Switch:
YES
