Description
Description
Manufacturer
DuraComm
Product Description
Power Distribution Blocks
Product Narrative

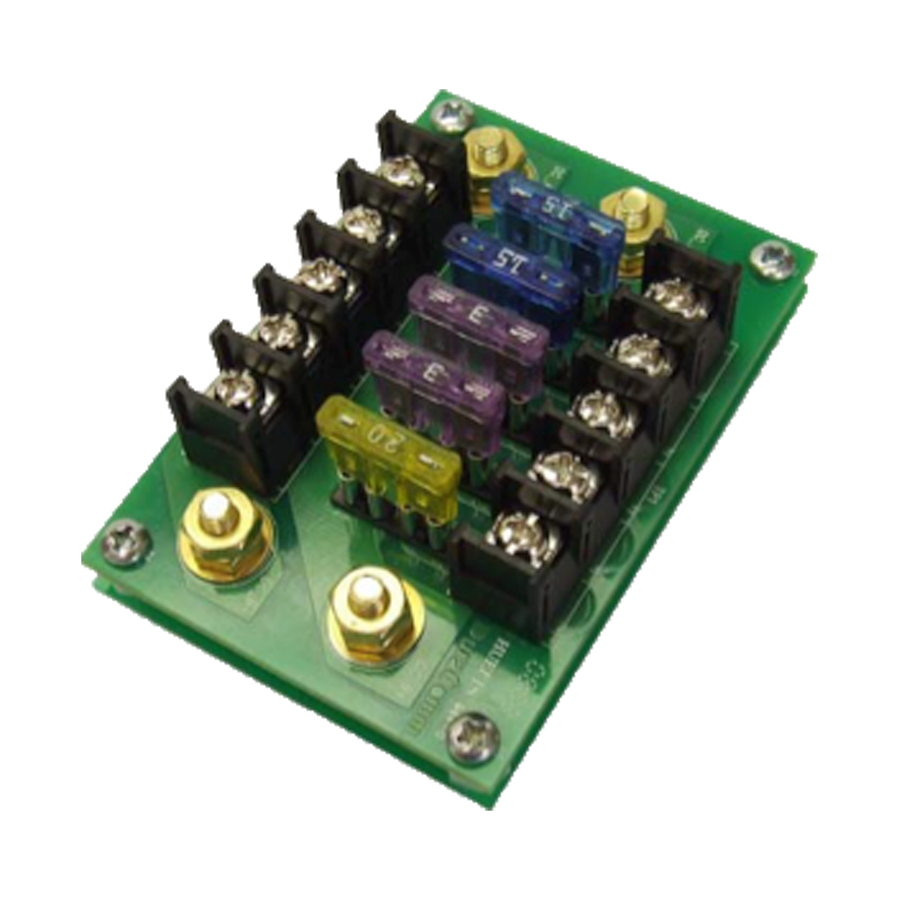

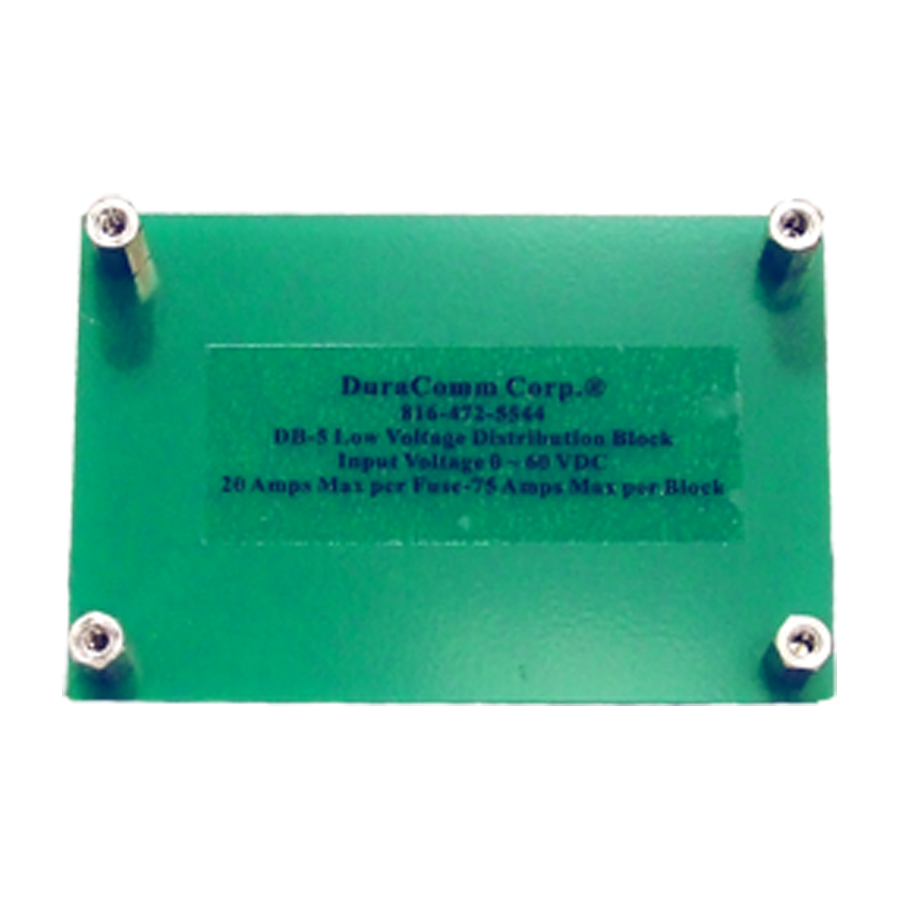

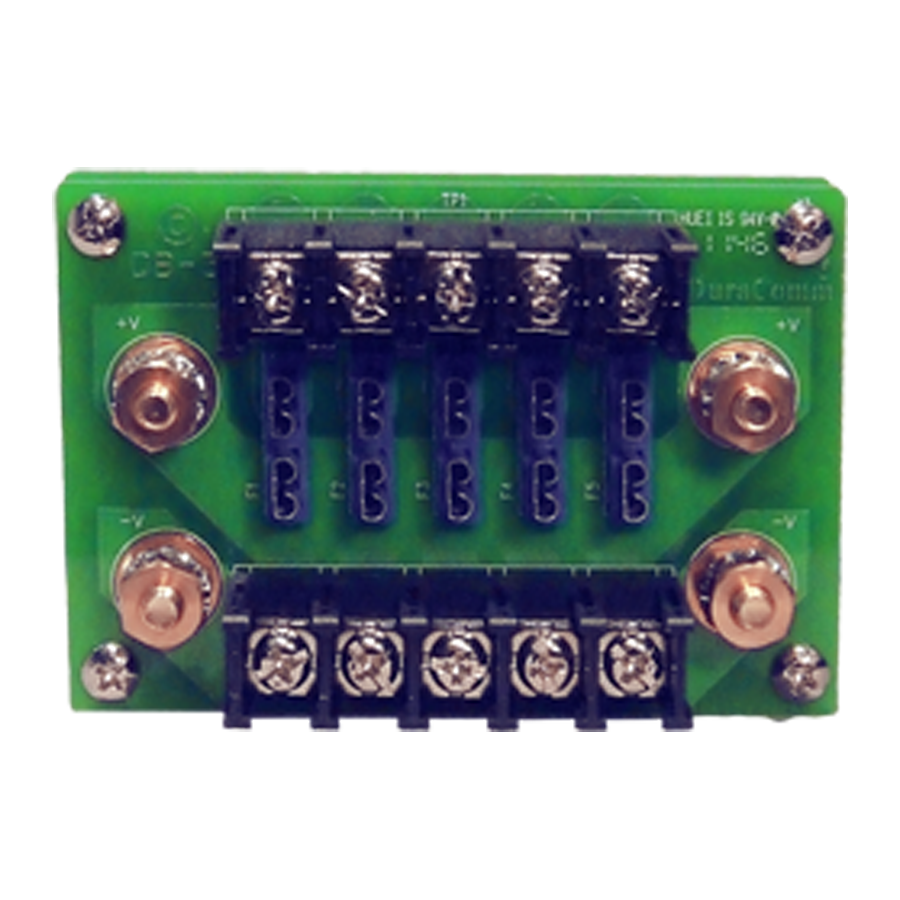

The DB-5 has 5 position fused distribution block. This power distribution block is DuraComm designed and built for up to 20 Amps per fuse and 75 per block.
Input Range VDC:
0-60
Amps (Max per Panel):
75
Number of Positions:
5
Amps (Max per Position):
20
Panel Height:
1.5"
Weight (lbs):
0.25
Dimensions:
1.5"H x 3.5"W x 2.5"D
