DuraComm DP-10i-100-MU

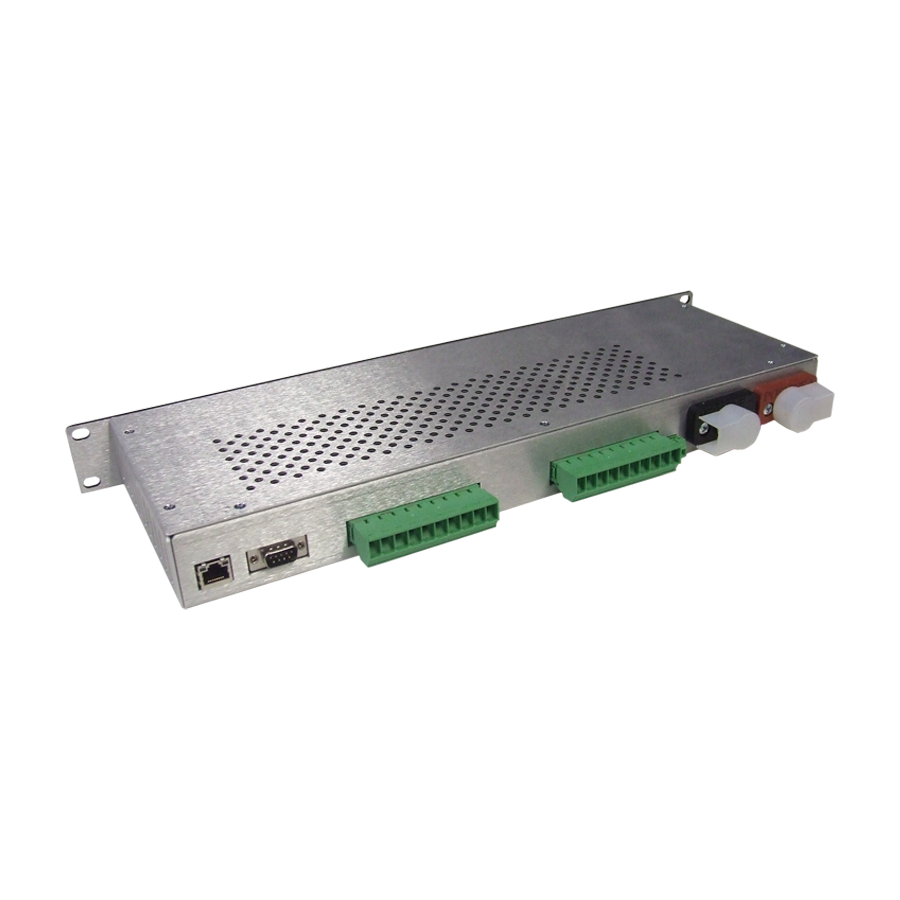

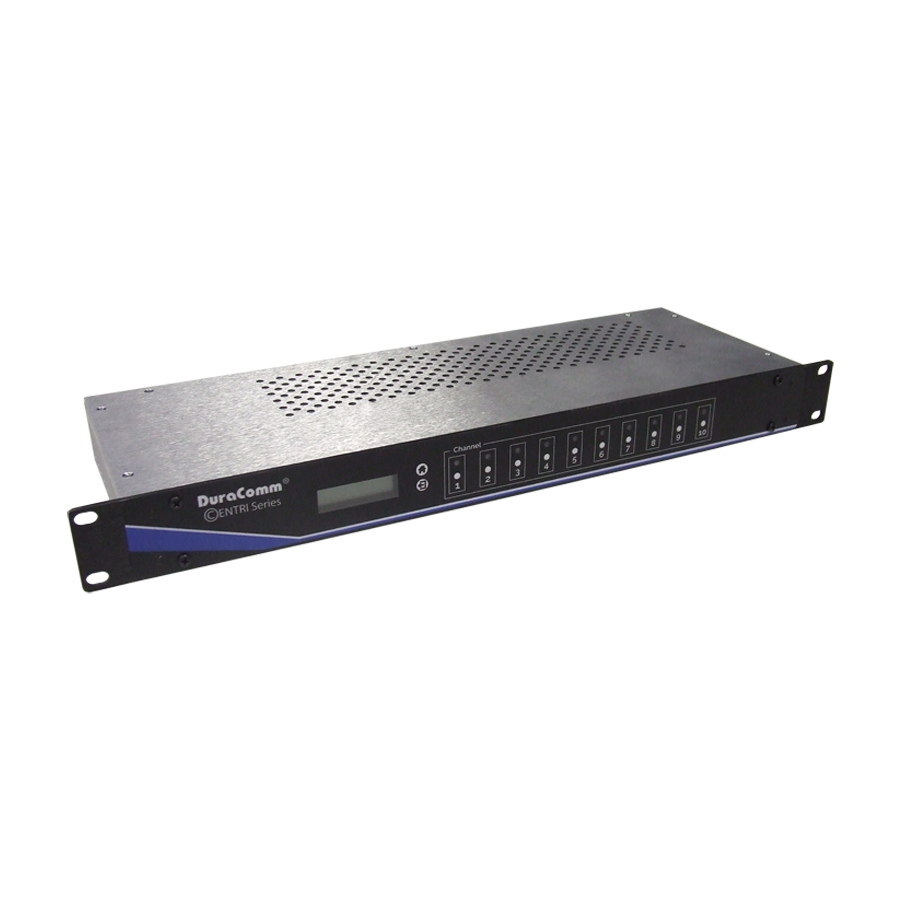

The DP-10i-100-MU is a power distribution panel that provides up to 10 load circuits protected by electronic fuses with remote monitoring of voltage and current for each position, remote on/off control, remote fuse reset, and email alerts. Each circuit can be user adjusted up to 30 Amps Max. The unit has an easy to use LCD display and LED status indicators are on the front of the unit while input and output are on the rear.  Remote monitoring through a standard Ethernet internet connection. Heavy duty DC input connectors provide strong ¼ inch studs to accept up to 100 amps from a single power supply. Convenient pluggable phoenix connector block output terminals for ease of installation. All inputs and outputs are isolated.

The DP-10i-100-MU integrates with DuraComm’s Site Centri unit to provide SNMP alarms and monitoring.

**Not suitable for positive ground applications. (i.e. -48v systems)
