Description
Description
Manufacturer
DuraComm
Product Description
Rack Mount E-Fuse DC Distribution Panel
Product Narrative

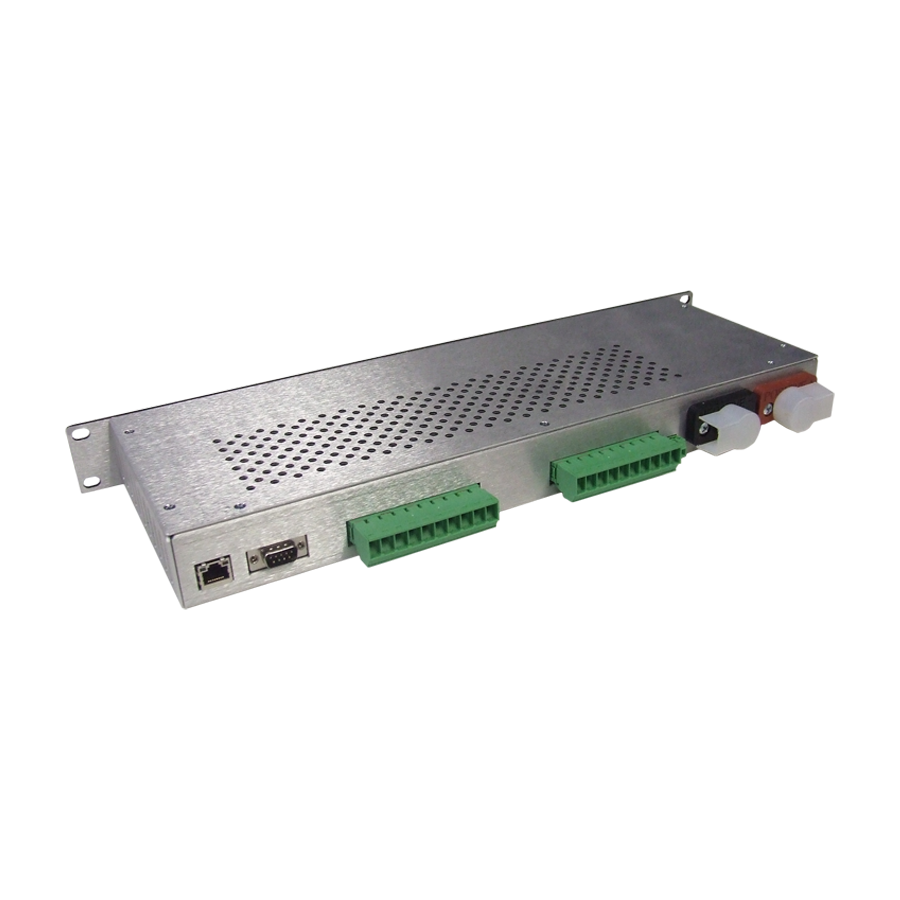

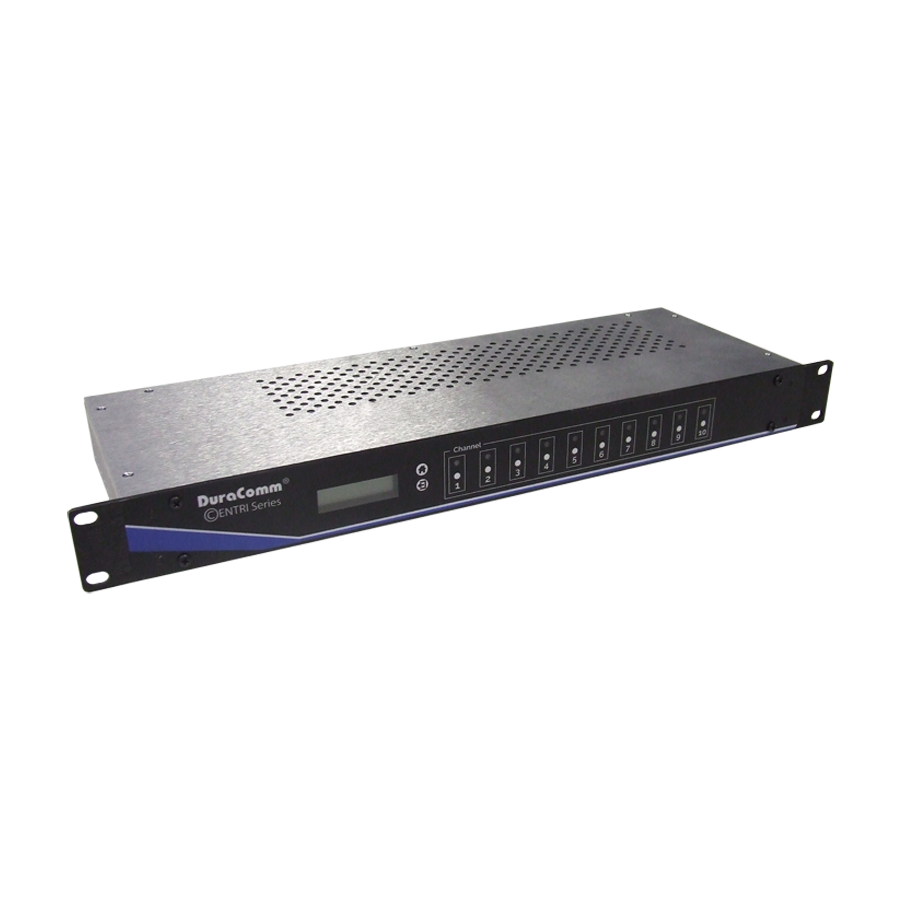

The DP-10i-100-MU Centri Series Electronic Fuse distribution panel is a rack mount (1U) power distribution panel that provides up to 10 load circuits protected by individual electronic fuses. The unit provides real-time power monitoring for all connected devices including email notifications.
*DP-10iN-100-MU works with positive ground systems ONLY (i.e. -48v systems)
Input Range VDC:
-60 to 0
Amps (Max per Panel):
100
Number of Positions:
10
Amps (Max per Position):
30
Panel Height:
1.75"
Weight (lbs):
8
Dimensions:
1.75"H x 19"W x 11"D
