Description
Description
Manufacturer
DuraComm
Product Description
ATC Fused Distribution with LEDs
Product Narrative

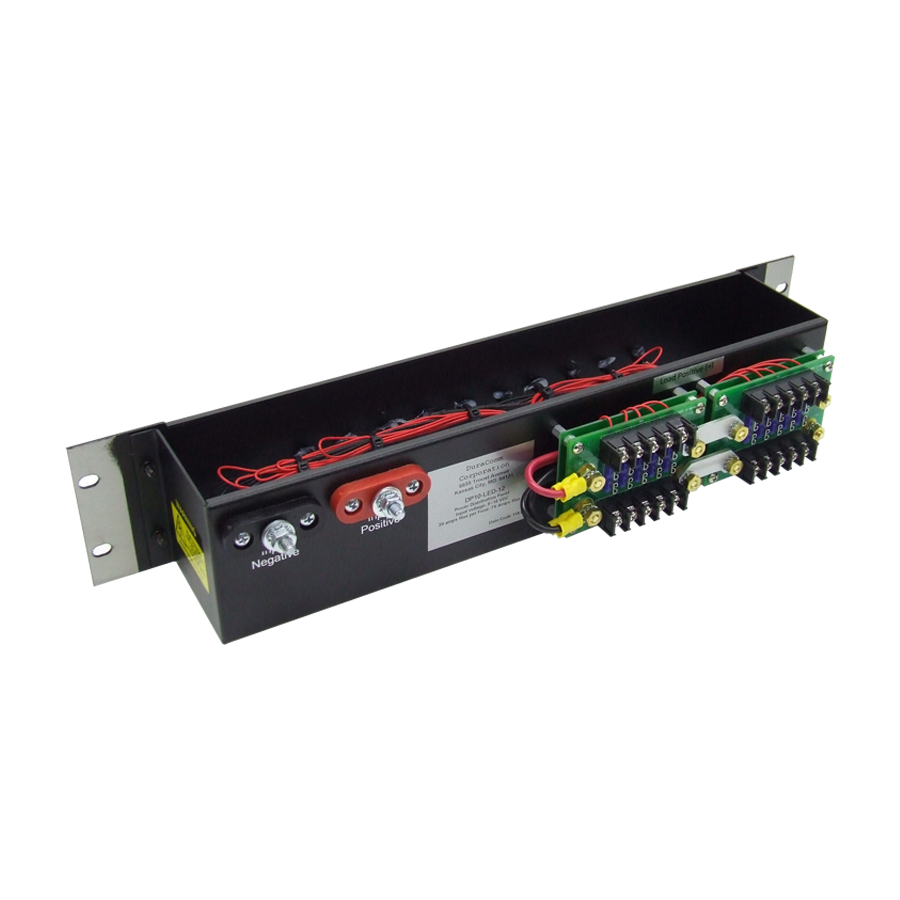

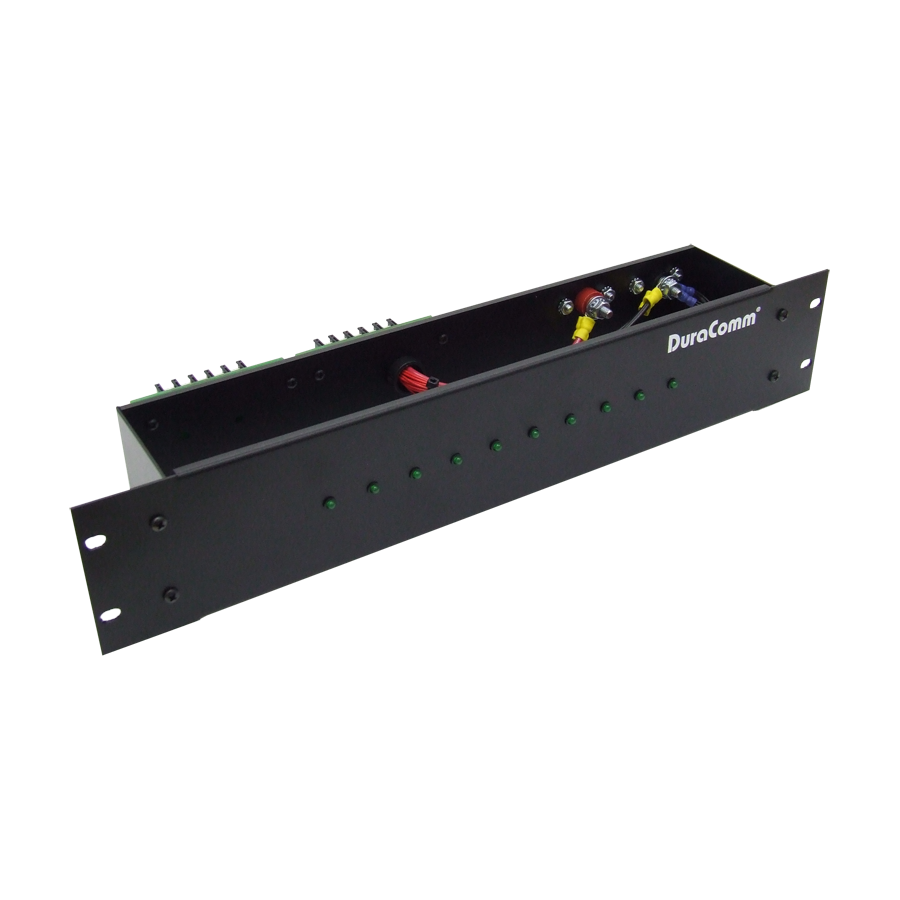

This DP10-LED-12 power distribution panel is designed for use with 12 volt system. The DP10-LED-12 offers up to 75 amps, and can access power from 10 outputs, 20 amps maximum per output. The DP10-LED-12 uses standard ATC/ATO blade fuses (not included). The front panel LEDs indicate circuit condition (Open/Closed).
*Caution: please ensure proper fuse rating for ±48 Volte operation
Input Range VDC:
5-15
Amps (Max per Panel):
75
Number of Positions:
10
Amps (Max per Position):
20
Panel Height:
3.5"
Weight (lbs):
5
Dimensions:
3.5"H x 19"W x 4.5"D
