Description
Description
Manufacturer
DuraComm
Product Description
Circuit Breaker Distribution Panel
Product Narrative

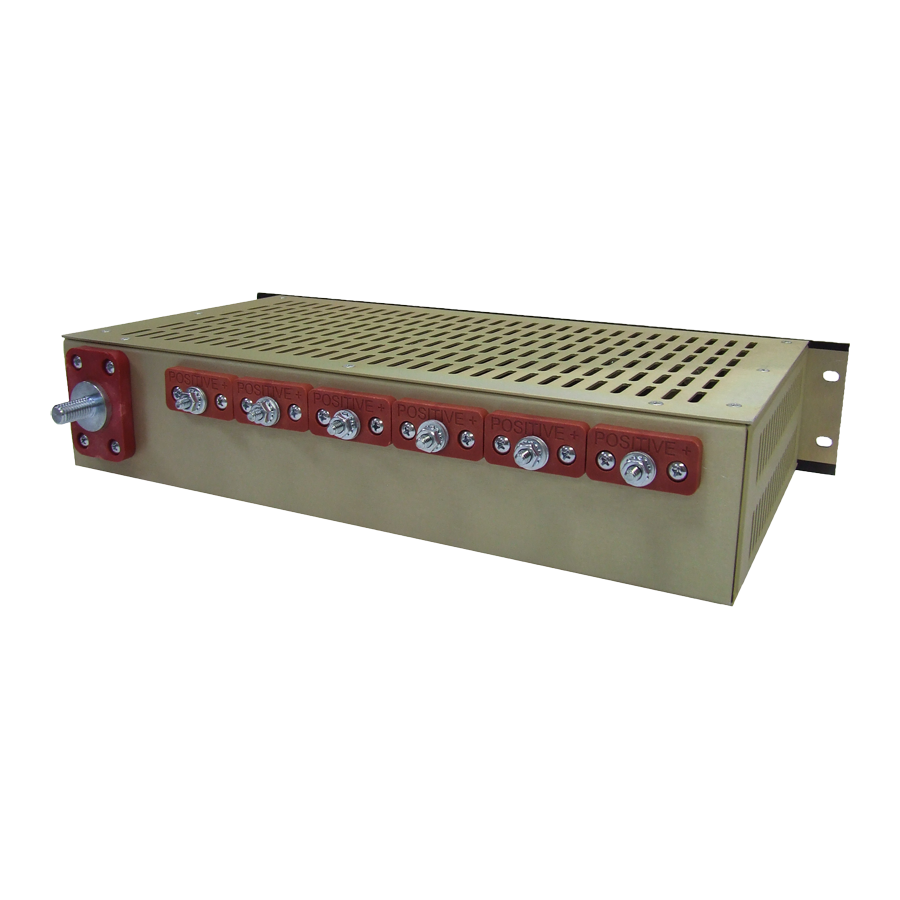

The DCBP-400-60-6 is a commercial duty rack mount distribution panel with six 60 amp direct current breakers installed.
NOTE: This product is intended for use with DuraComm DCBB-700 Bus Bar or similar product.
Input Range VDC:
0-150
Amps (Max per Panel):
400
Number of Positions:
6
Amps (Max per Position):
60
Panel Height:
3.5"
Weight (lbs):
11
Dimensions:
3.5"H x 19"W x 10.5"D
