Manufacturer
DuraComm
Product Description
Distribution Busbar
Product Narrative

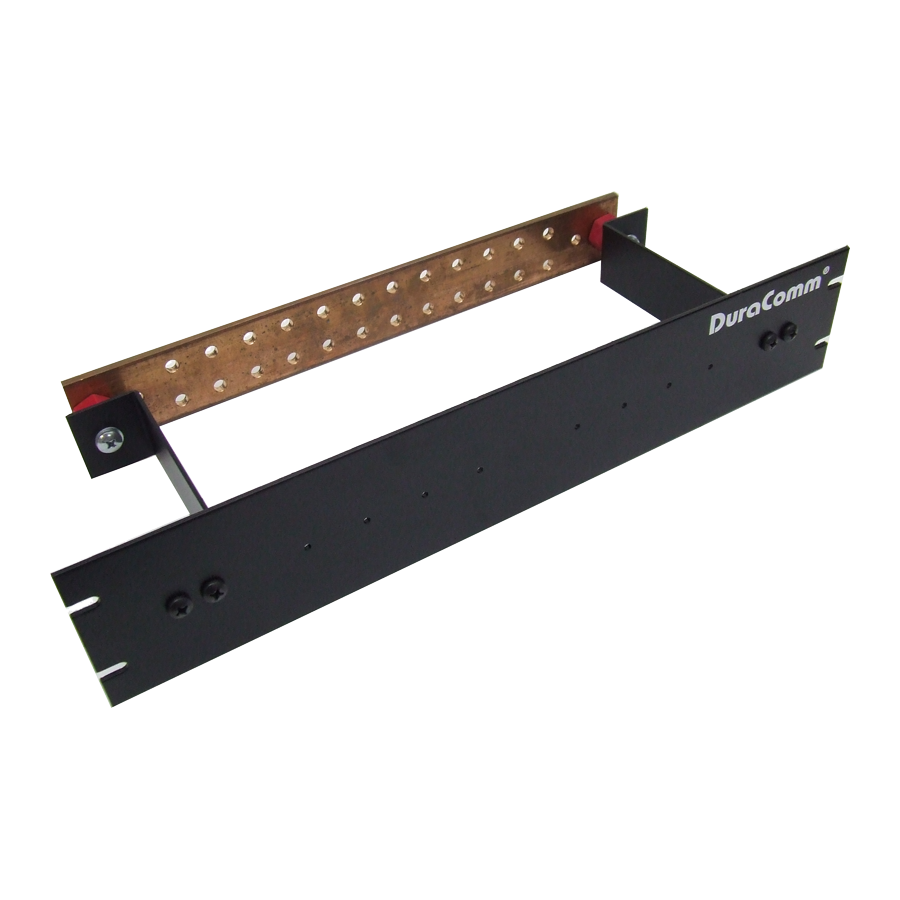

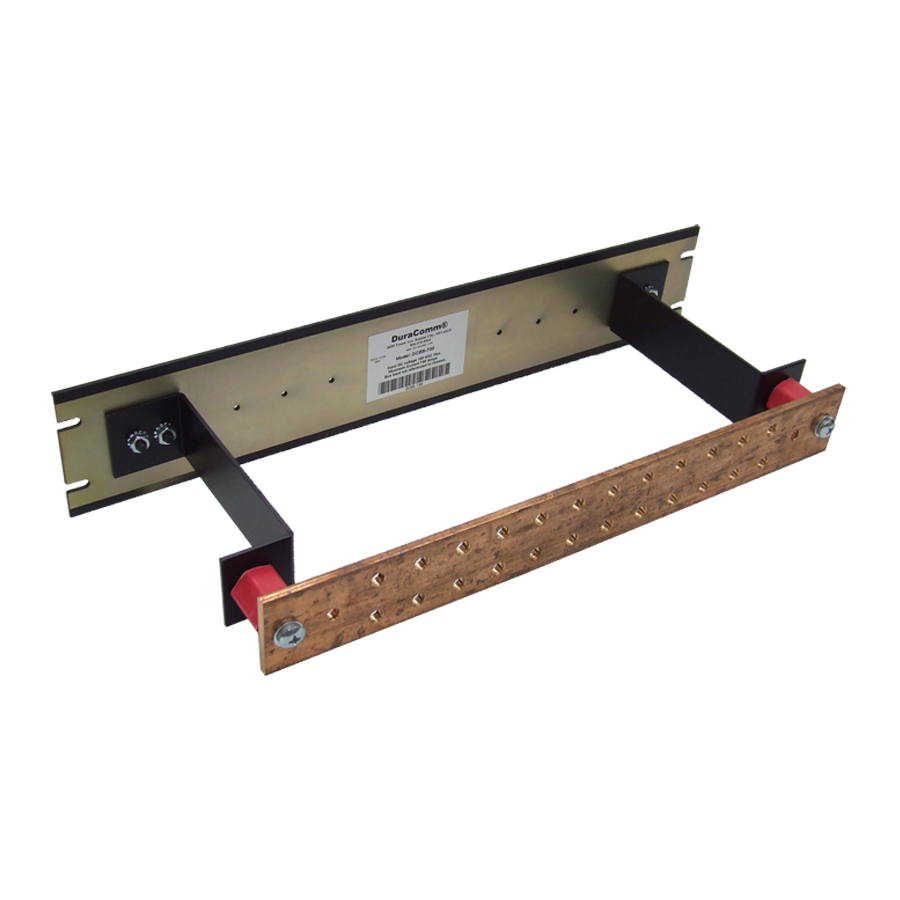

The DCBB-700 power distribution bus bar is 2 rack units high and rated up to 700 Amps max. This Bus bar is for 12, 24, 48 and 72 volt systems.
Input Range VDC:
0-150
Amps (Max per Panel):
700
Number of Positions:
N/A
Amps (Max per Position):
N/A
Panel Height:
3.5"
Weight (lbs):
6
Dimensions:
3.5"H x 19"W x 7"D
