Manufacturer
DuraComm
Product Description

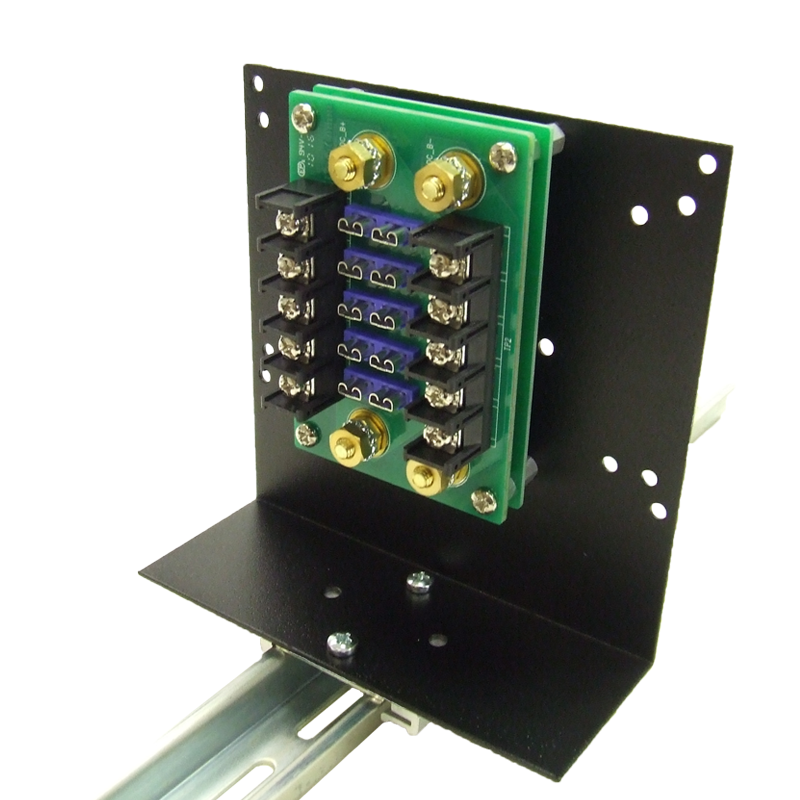

DIN Mount ATC-ATO Fused Distribution Panel
Product Narrative
This DIN-5-75 is DIN mount ATC-ATO fused distribution panel. The DIN-5-75 has ten positions at 20 Amps maximum per fuse. Has negative and positive bus bar for efficient power distribution for a maximum current of 75 Amps.
Input Range VDC:
0-60
Amps (Max per Panel):
75
Number of Positions:
5
Amps (Max per Position):
20
Panel Height:
5"
Weight (lbs):
1
Dimensions:
5"H x 2"W x 5.25"D
