Manufacturer
DuraComm
Product Description
PSBC-160024NFP
Product Narrative

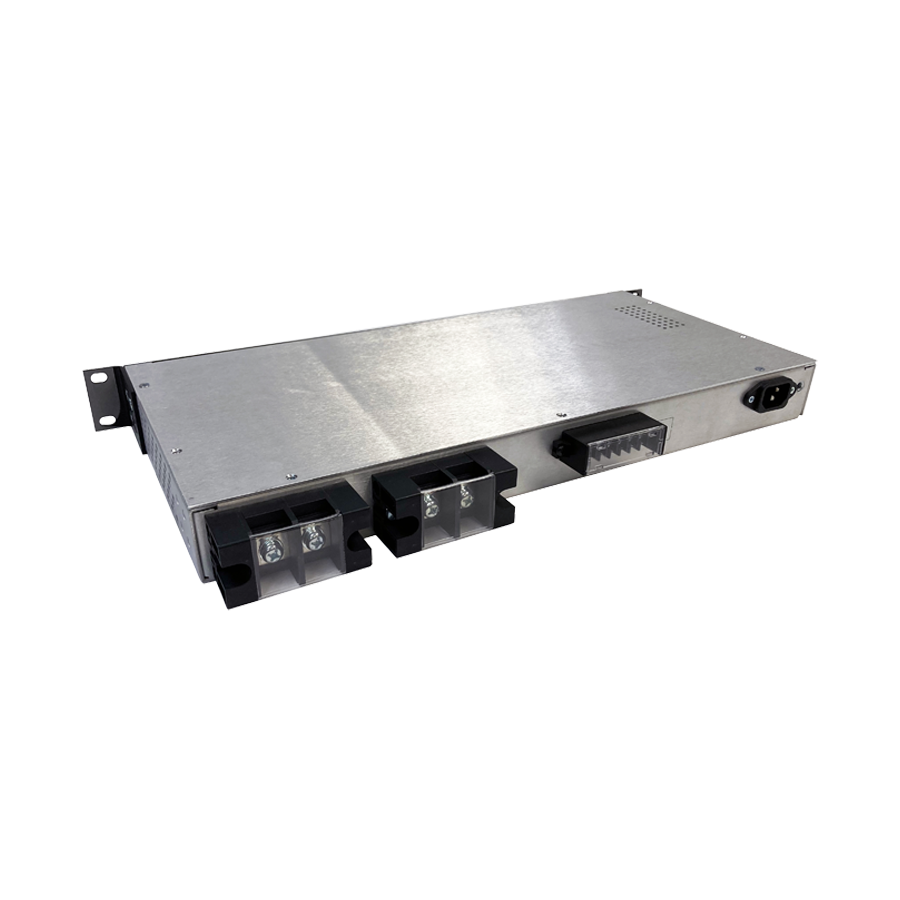

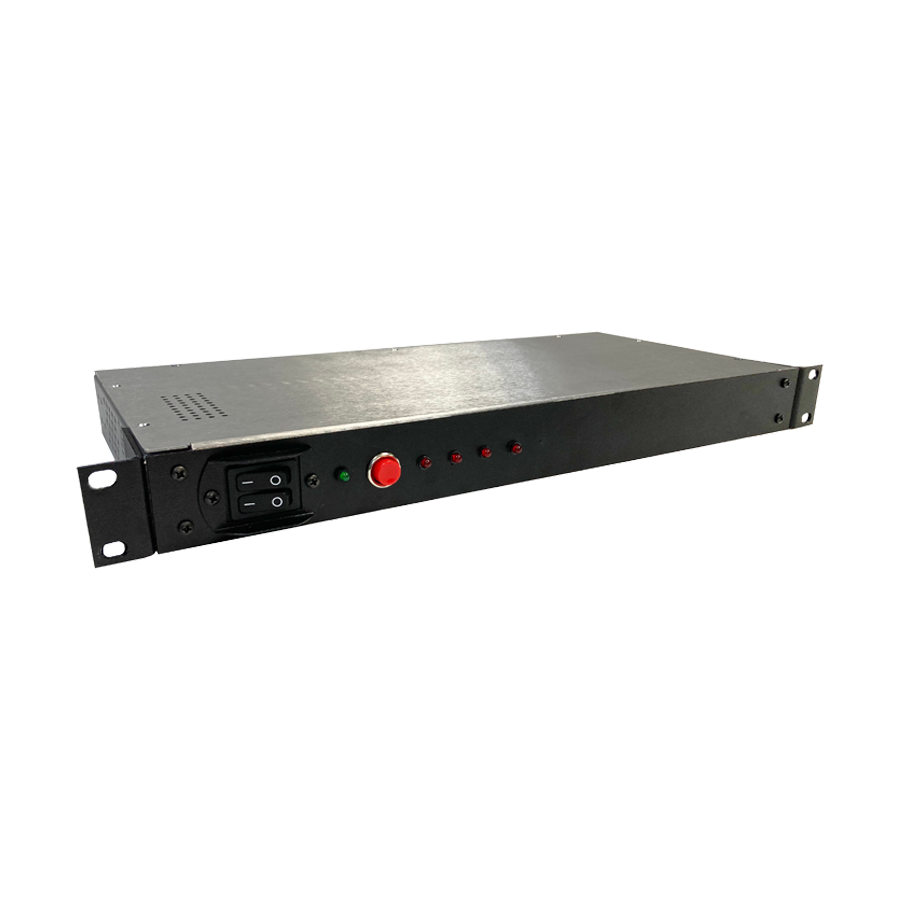

The PSBC-1600NFP Series are 1600 Watt rack mount battery chargers with NFPA® compliant alarms. The Smart Charger provides up to 1600 Watts DC output in 3 stages for optimal battery performance. NFPA® 1221 compliant alarming is provided by NO/NC form C contacts on the rear panel and visual LED indicators on the front. Alarms include AC fail, charger fail, 70% battery discharge, and battery fail. The PSBC-1600NFP Series is available in 12,24, & 48V Output.
Output Current (Amps):
27.6
Input Voltage VAC:
90-264
Charging Current Amps:
55
Weight (lbs):
12
Dimensions:
1.75"H x 19"W x 13"D
Battery Amp Hours:
up to 550 Ah
