Description
Description
Manufacturer
DuraComm
Product Description
DCDC-130-24
Product Narrative

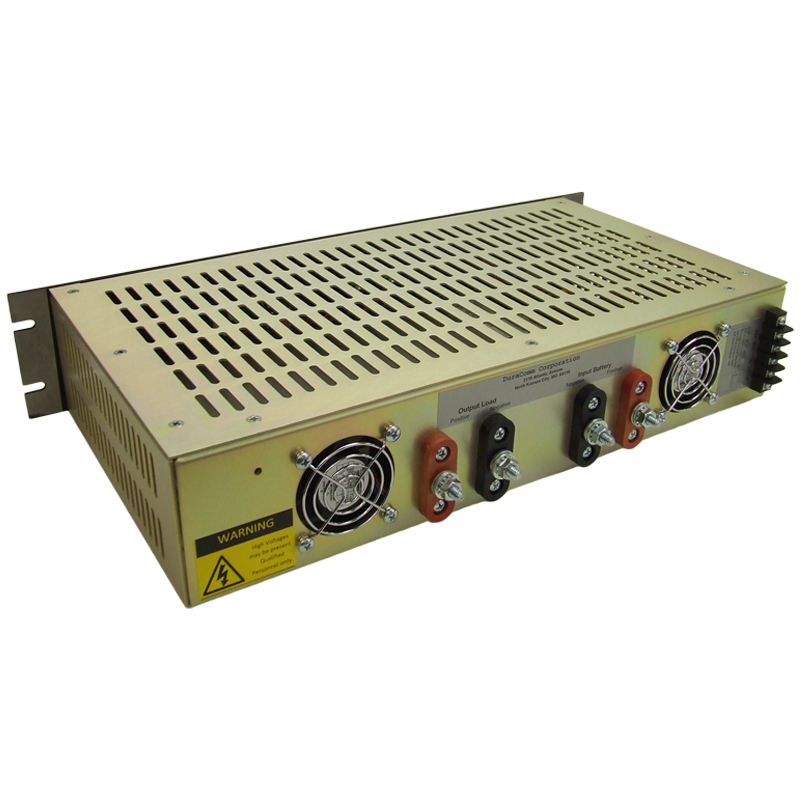

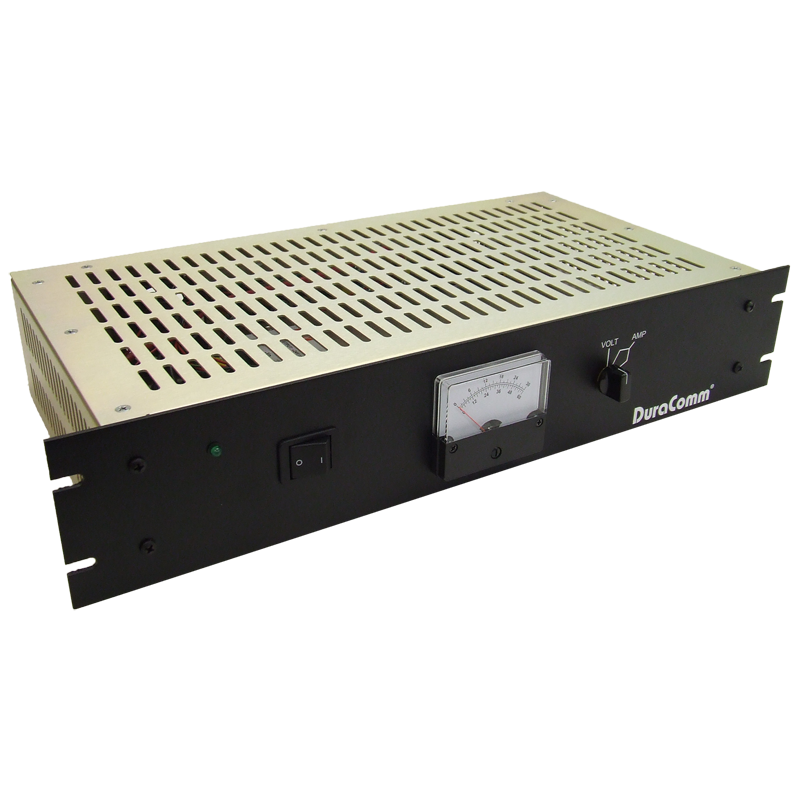

The DCDC-130-24 is a 2U rack mount DC-to-DC converter that is capable of 1000 watts of power. It has isolated inputs and output with 2000 VAC isolation, so it can be used in positive ground installations. All DCDC-130 models come with a standard voltage and amperage selectable meter. Along with thermostat controlled forced air-cooling. All DCDC-130 models come equipped with short circuit, overload, and over temperature protection.
Output Current (Amps):
40
Output Voltage VDC:
24
RC & DC-OK:
NO
Input Range VDC:
72-144
Output Range VDC:
23-30
Weight (lbs):
12
Dimensions:
3.5"H x 19"W x 11"D
