DuraComm DCDC-48-24

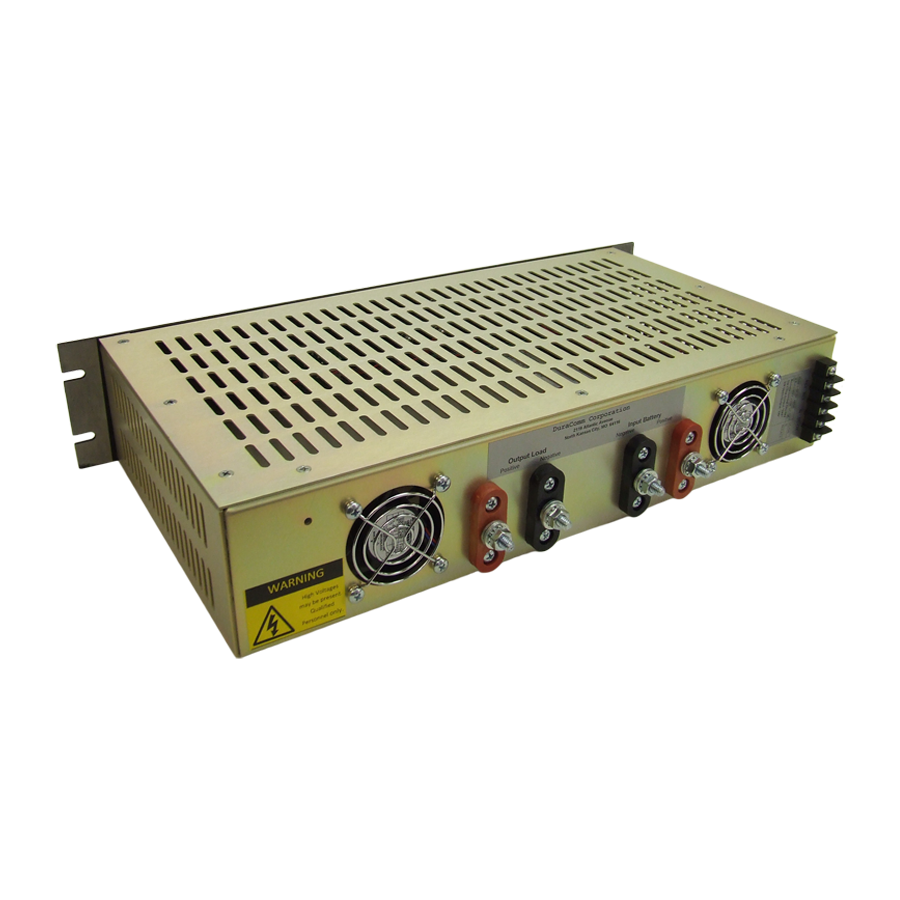

The DCDC-48-24 is a 2U rack mount DC-to-DC converter power supply that is capable of 1000 watts of power. It has isolated inputs and outputs, so it can be used in positive ground installations. The LVD is pre-set to disconnect the load at 42.0 VDC. However, to prevent premature or false disconnect when the input source voltage drops below the 42.0 volt threshold a two-minute timer is started. If the input source recovers to above 42.0 volts, the timer resets and waits. The timed delay ensures the input source voltage is not disconnected until necessary to prevent damage. After the main input source voltage is restored, the LVD will reconnect the load when the input source voltage exceeds 50.0 volts.
