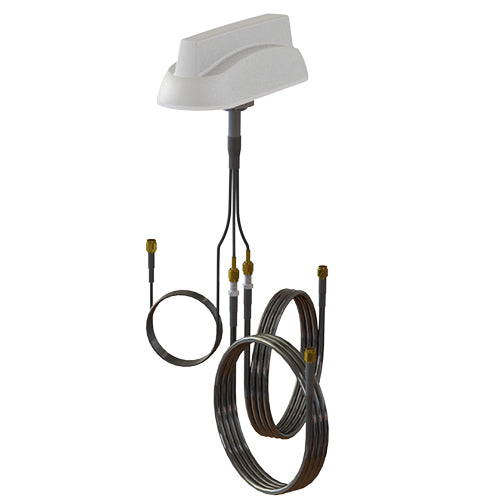

Laird TE Connectivity VFT69383W11JN-518L
Regular price
$23995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
TE Connectivity
Product Description
3-Port MIMO in 3G/4G/5G/ISM/CBRS/GNSS
Product Narrative
The Gar low-profile multiport/multiband antenna provides an excellent solution for public safety, transportation, and aftermarket fleet applications.
The VFP69383B22JN is a 5-port antenna that comes configured for 2-port MIMO operation over the 3G/4G/5G/ISM/CBRS bands, and 2-port MIMO operation over the low/high frequency Wi-Fi bands. The additional 5th port provides an active antenna for enabling GNSS global navigation services (which includes GPS, GLONASS, Galileo, Beidou, and other regional systems).
Antenna Type
Vehicular
Cable Length (cm)
518 cm
Cellular Ports
1
Color
White
Connectors
SMA Male, Reverse Polarity SMA Male
Dimension (Height-mm)
48 mm
Dimension (Length-mm)
179 mm
Dimension (Width-mm)
63 mm
Frequency Range
698 - 960 MHz
Frequency Range2
1559 - 1606 MHz
Frequency Range3
1690 - 3800 MHz
Frequency Range4
2400 - 2500 MHz
Frequency Range5
4900 - 6000 MHz
Gain
-0.3 - 7.3 dBi
No. of Ports
4
Pattern Type
Omnidirectional
Type
3 Port (1 Cellular, 1 Wi-Fi, 1 GNSS)
Warranty
5 Year
