Laird TE Connectivity MTRA61274CB2-001
Regular price
$16995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
TE Connectivity
Product Description
617-960/1350-2700 MHz 2-Port MIMO Phantom, BLK
Product Narrative

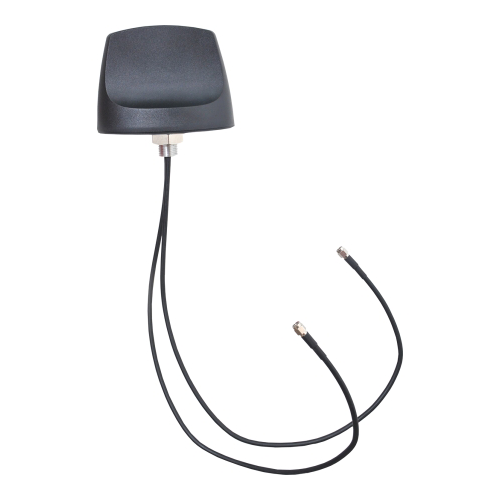

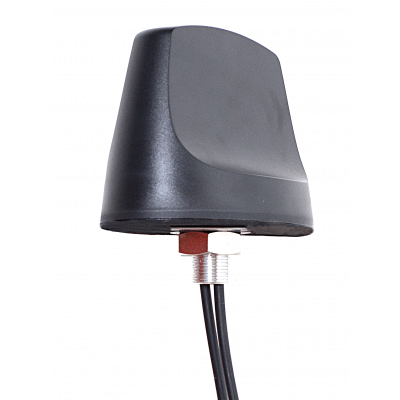

The Laird MTRA61274CB2 is a next generation product, offering 2-port MIMO functionality to Laird’s Phantom series product line. The product is designed to provide 3G/4G/ISM/UMTS and 802.11b/g/n operation at each port with an extended low band frequency coverage of 617 – 960 / 1350 – 2700 MHz. With optimized pattern coverage the antenna provides an excellent solution for MIMO IoT / M2M applications. MTRA61274CB2-001 is a 2-port MIMO antenna with 610 mm (24 in) of LMR195 coaxial cables terminated in SMA Male connectors operating over 617 – 960 / 1350 – 2700 MHz at each port ideal for IoT / M2M applications. The antenna is black.
Specific Frequency
1350-1550 MHz, 1690-1880 MHz, 1850-1990 MHz, 1910-2180 MHz, 2300-2500 MHz, 2500-2700 MHz, 617-698 MHz, 698-824 MHz, 824-894 MHz, 880-960 MHz
Item Height
3.74 in
Maximum Power
50 W
Gain dBi
2.9 dBi, 3.6 dBi, 3.5 dBi, 3.9 dBi, 3.6 dBi, 2.7 dBi, 2.7 dBi, 2.8 dBi, 3.1 dBi, 2.4 dBi
Item Weight
0.75 lb
RF Connectors
SMA Male
Item Length
5.12 in
Coaxial Cable Series
195
Cable Length
2 ft
Item Width
3.31 in
GPS Included
No
Color
Black
Warranty
5 Year
