Laird TE Connectivity MTRA61274CW2-001

TE Connectivity

M2M LTE MIMO Phantom 617-2700 MHz, white

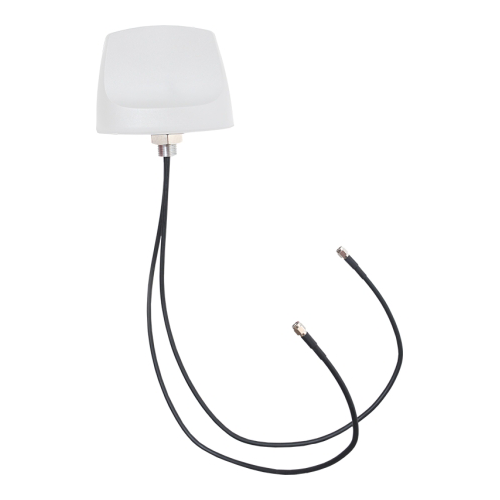

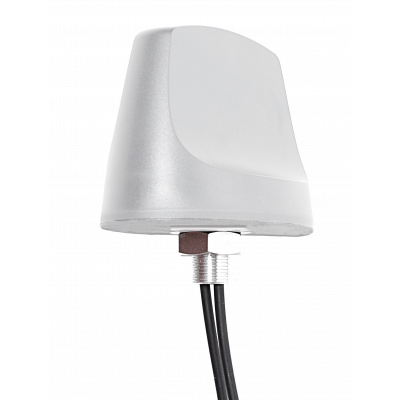

The Laird MTRA61274CB2 is a next generation product, offering 2-port MIMO functionality to Laird’s Phantom series product line. The product is designed to provide 3G/4G/ISM/UMTS and 802.11b/g/n operation at each port with an extended low band frequency coverage of 617 – 960 / 1350 – 2700 MHz. With optimized pattern coverage the antenna provides an excellent solution for MIMO IoT / M2M applications. MTRA61274CW2-001 is a 2-port MIMO antenna with 610 mm (24 in) of LMR195 coaxial cables terminated in SMA Male connectors operating over 617 – 960 / 1350 – 2700 MHz at each port ideal for IoT / M2M applications. The antenna is white.

617-698 MHz, 698-824 MHz, 824-894 MHz, 880-960 MHz, 1350-1550 MHz, 1690-1880 MHz, 1850-1990 MHz, 1910-2180 MHz, 2300-2500 MHz, 2500-2700 MHz

3.74 in

50 W

2.4 dBi, 3.1 dBi, 2.8 dBi, 2.7 dBi, 2.7 dBi, 3.6 dBi, 3.9 dBi, 3.5 dBi, 3.6 dBi, 2.9 dBi

0.75 lb

SMA Male

5.12 in

195

2 ft

3.31 in

No

White

5 Year
