Laird TE Connectivity FTRA6971M5PB-001

TE Connectivity

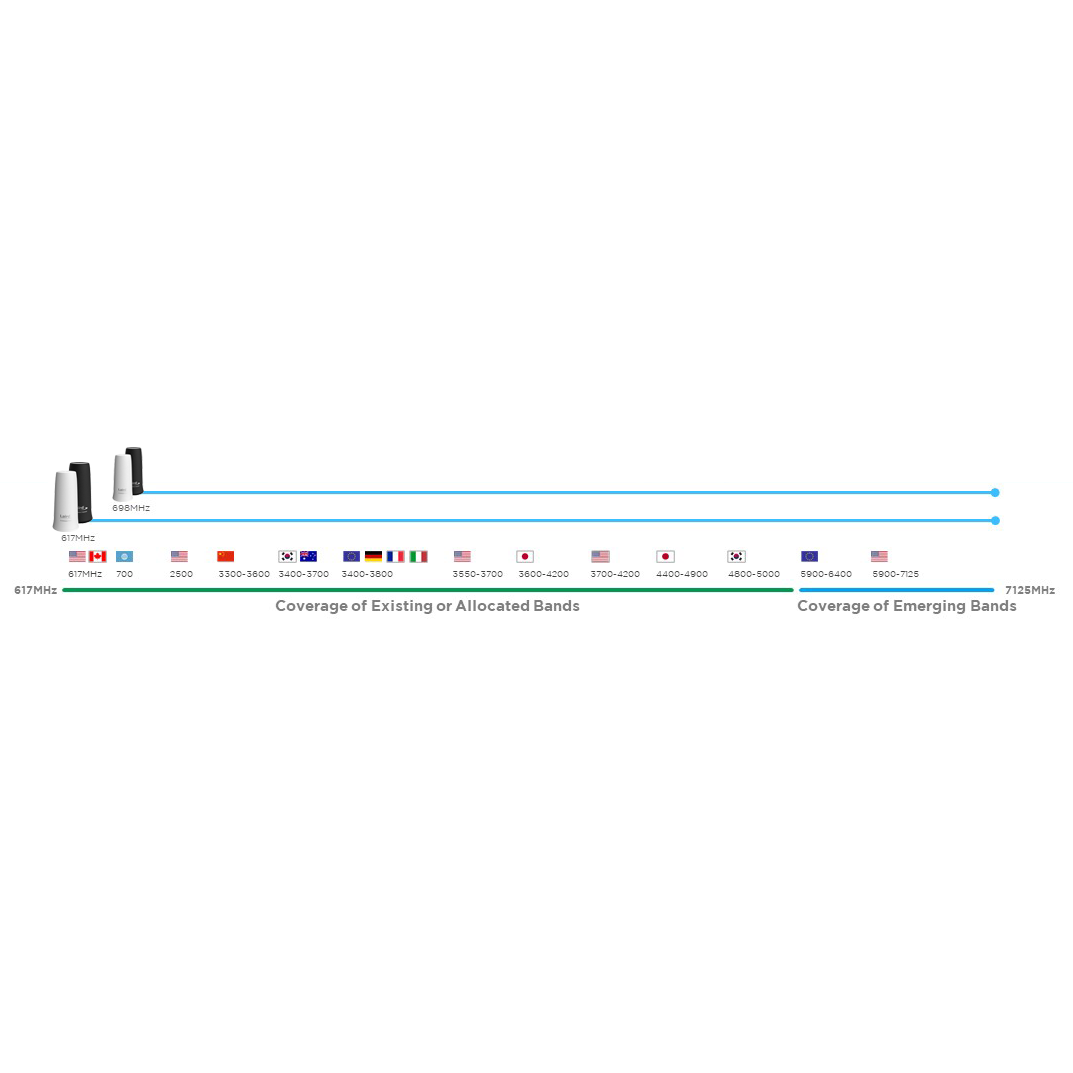

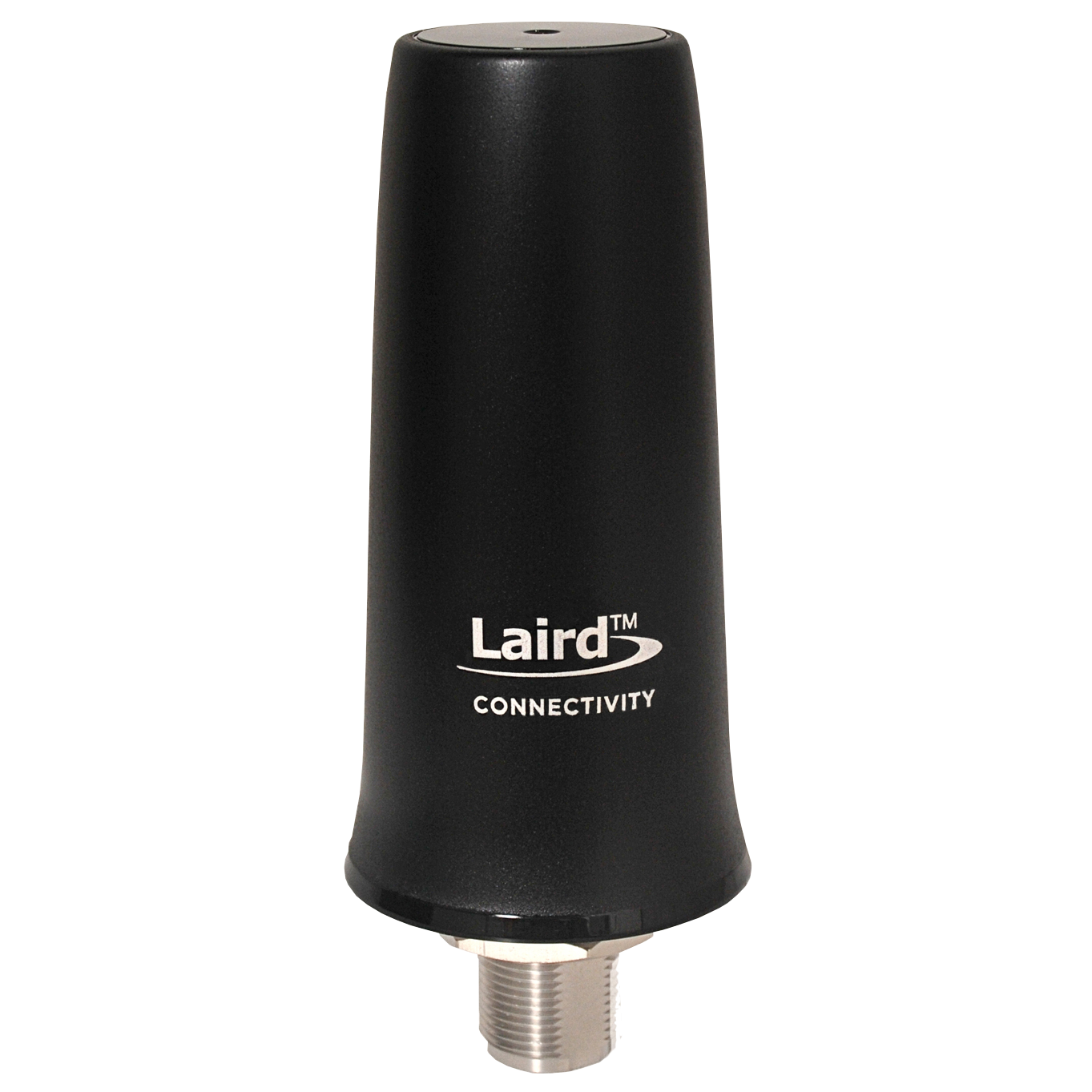

The 5G Phantom on-ground plane antenna series cover either 617-7125 or 698-7125 MHz and are both available in black or white

The 5G Phantom series of on-ground plane and off-ground plane antennas cover either 617-7125 or 698-7125 MHz, delivering global cellular coverage even for regions where the lower 600MHz band is required. They offer high levels of average efficiency, over 80% up to 4200 MHz, with gain up to 6 dBi in an IP67 and UL 94 flammability rated compact form factor.

A direct-mount, threaded stud, with superior quality and integrated N-female connector provides tamper-resistant installation. The direct coaxial connection ensures performance remains consistent, even at the higher frequencies, avoiding the performance losses of other mounting methods.

Phantom, Vehicular

Black

Type N Female

Outdoor

617 - 7125 MHz

4 - 5.5 dBi

Omnidirectional

5 Year
