Description
Description
Manufacturer

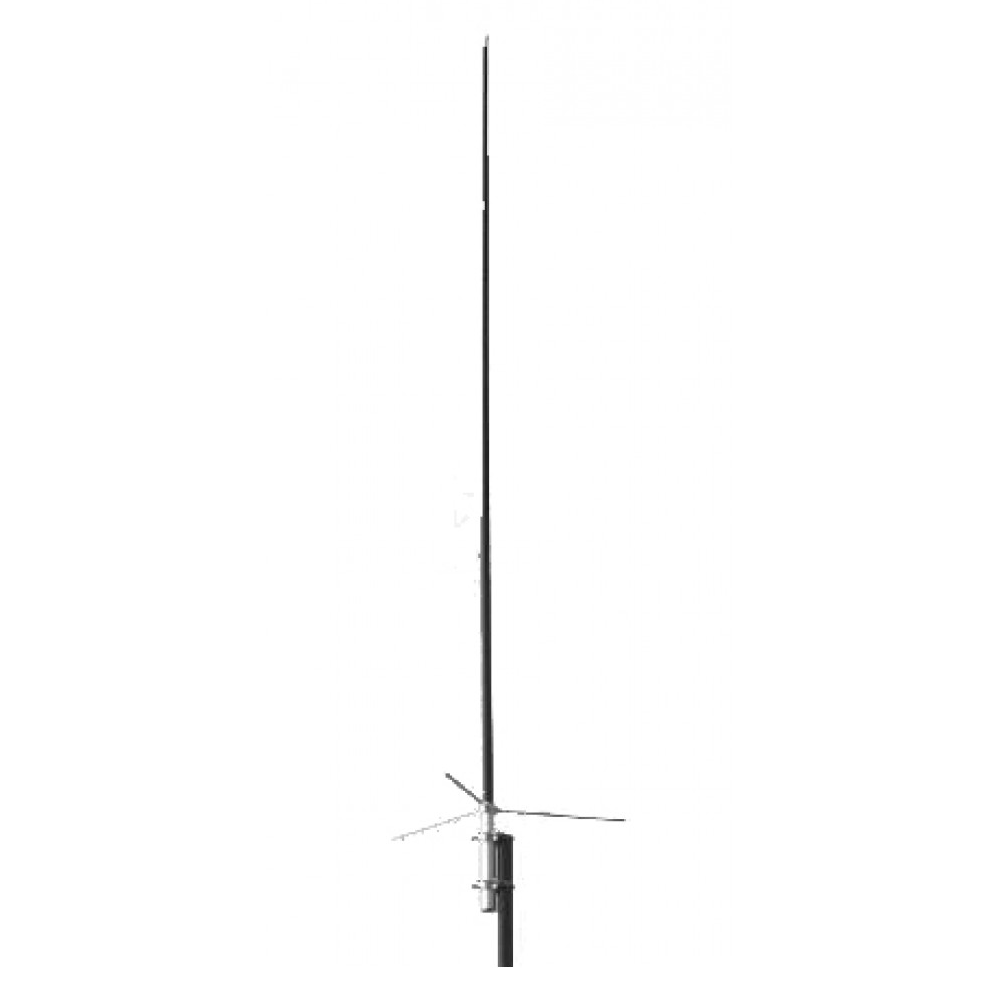

NCG Comet
Model
CA-SUPER22
Product Narrative
- Omni-directional radiation pattern
- Wide frequency range, no tuning adjustments required
- Heavy duty, one-piece black fiberglass radome
- Heavy-duty extruded aluminum mounting brackets and stainless steel hardware included for stability in adverse weather conditions
- Unique mounting pipe acts as a weather shield protecting the coax to antenna connection from wind/ice/snow etc.
Specific Freq. (MHz)
220-225Mhz
Gain (dB)
6.6dBi
Maximum Power (Watts)
150 watts
Impedance
50 Ohms
VSWR
1.3:1 or less
Max wind speed
110MPH
Length
8 ft
Weight
2lb 13ozs
Connector
SO-239
