Manufacturer
Daiwa
Product Description

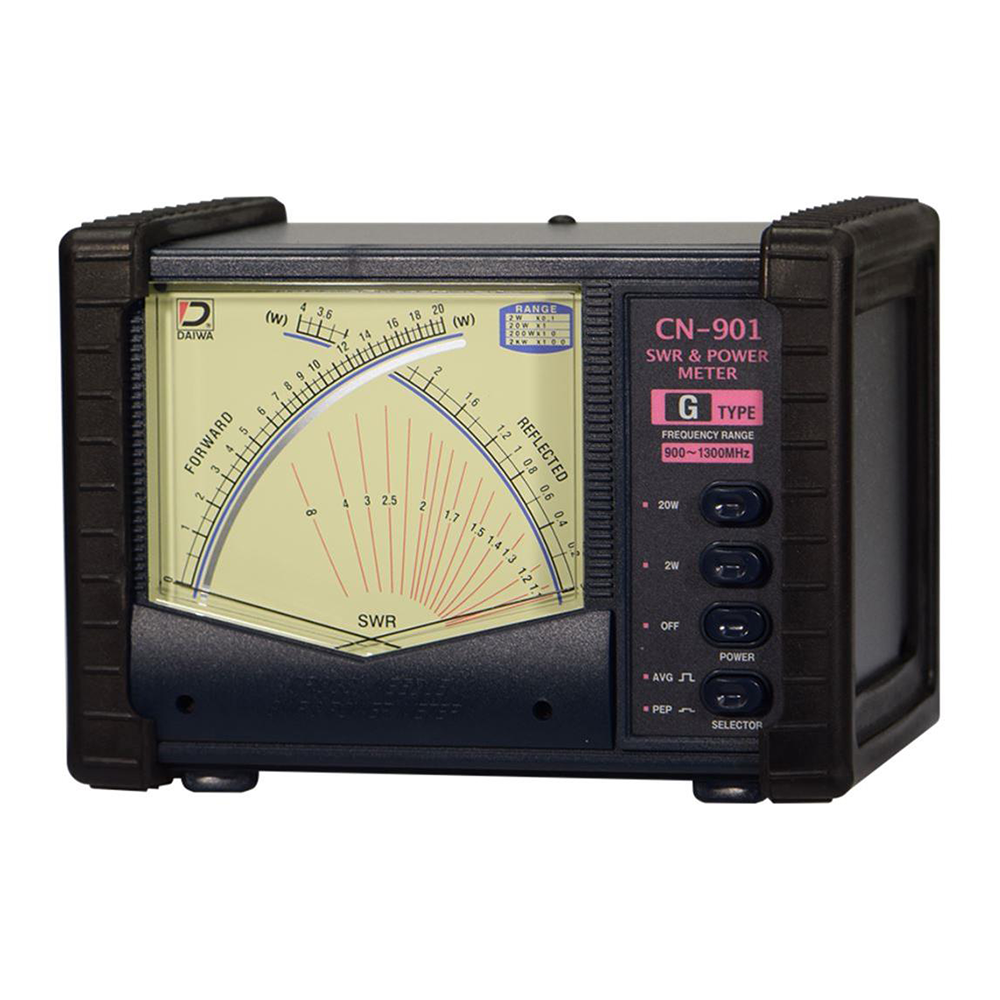

Daiwa CN-901 Professional Series Bench Meters offer accurate readings, reliable performance, and great value. Daiwa's large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task. Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The SWR is indicated at the crossing point of the two needles… so you can read all three of these important measurements at the same time! Their HP models can also measure P.E.P. That's peak power in SSB operation. A DC cable with 2.5mm plug is included. There are also several frequency-ranges and power levels in the Daiwa CN-901 professional series family to choose from.
Frequency Coverage
900-1,300 MHz
Maximum Power Range
20 W
Connector Type
N Female
DC Power Required
Yes
External Power Input Voltage
13.8 Vdc
Width
6.300 in.
Height
4.300 in.
Depth
4.800 in.
Weight
2.20 lbs.
