Laird TE Connectivity VLT69273B11J-518A
Regular price
$24995
Unit price
Shipping calculated at checkout.
Description
Description
Manufacturer
TE Connectivity
Product Description
3-PORT 1x-4G, 1x-WIFI-GNSS, BK
Product Narrative

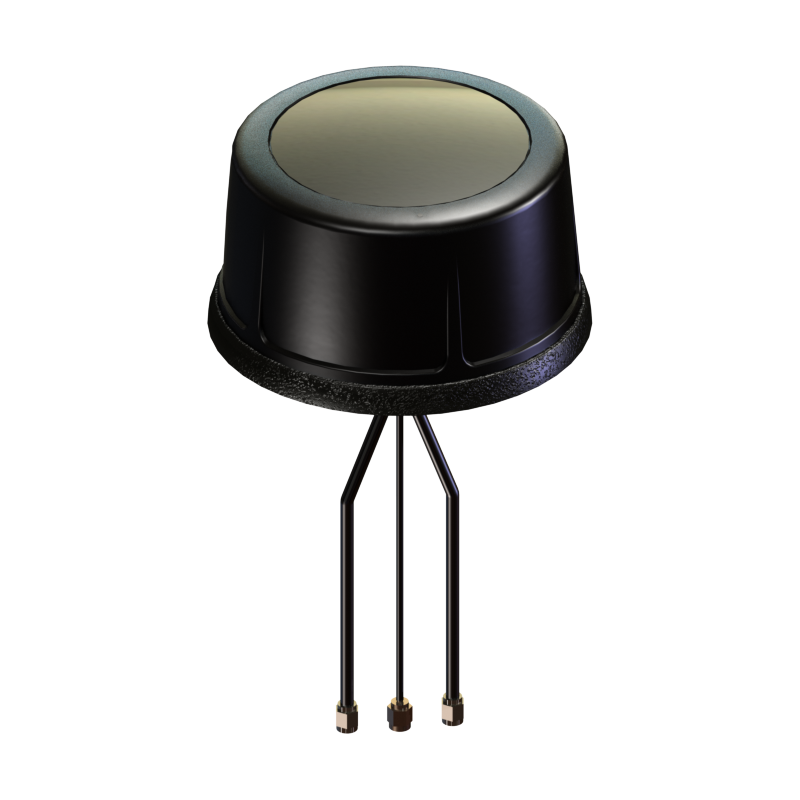

The TE Connectivity vehicular 3-port antenna consists of multiple radiators under a single housing. It can be configured for use in 802.11n or multiband SISO applications. Configured with ports that can cover 698-960 / 1710-2700 MHz, 2300-2700 / 4900-5900 MHz and GNSS (1561 - 1602 MHz) allowing for MIMO/SISO and/or Navigation/Location opportunities within the same antenna. Connector options include SMA male connectors for 3G/4G LTE and GNSS ports with an RPSMA male connector for the WiFi ports.
The housing incorporates a low-profile, rugged design that meets IP67 standards. The antenna also features high impact, UV-resistant polycarbonate plastic available in black or white.
Antenna Type
Disk-Puck, Vehicular
Cable Length
5.2 in
Connector
SMA Male, Reverse Polarity SMA Male
Frequency Range
698-960 MHz, 1710-2700 MHz, 2300 - 2700 MHz, 4900 - 5900 MHz, 1561.098 - 1602 MHz
Gain
2.6 - 6.0 dBi
Pattern Type
Omnidirectional
Warranty
5 Year
