Description
Description
Manufacturer
Times Microwave
Model #
LMR®-400-LLPX-BK
Product Description

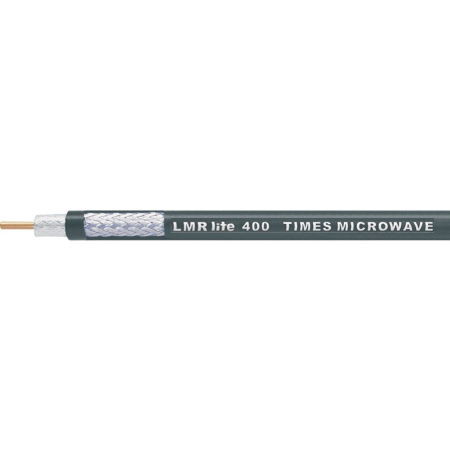

The Times Microwave LMR®-400-LLPL-BK plenum/CMP-rated low loss coaxial cable with black UV jacket is an indoor, fire retardant cable specifically designed for use in return air handling plenums. This 50 Ohm coaxial cable has a stranded outer conductor and bare copper center conductor. A 100 percent coverage foil, and 90 percent coverage braided shield prevents loss.
The braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1.25 in bending radius) and simplified connection. The new LLPX has an extended temperature range (-40 deg. C – 125 deg. C), higher power handling, and advanced chemical and UV resistance.
The Times LMR®-400 plenum-rated coaxial cable is available in bulk and is priced per foot.
The braided coaxial cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1.25 in bending radius) and simplified connection. The new LLPX has an extended temperature range (-40 deg. C – 125 deg. C), higher power handling, and advanced chemical and UV resistance.
The Times LMR®-400 plenum-rated coaxial cable is available in bulk and is priced per foot.
Loss @ 1000 MHz
4.39
Cable Type
LMR®-400-LLPX
Center Conductor Diameter
.100 in
Other Spec
Black Jacket
Nominal O.D.
0.405 in
Loss @ 100 MHz
1.35 dB
VOP
76 %
Loss @ 400 MHz
2.74 dB
Dielectric Insulation
PTFE
Loss @ 900 MHz
4.2 dB
Nominal Capacitance (pF/ft)
27.0
Shield %
100% foil 90% braid
Center Conductor Material
Copper Clad Aluminum
Nominal Core O.D.
0.285"
