Description
Description
Manufacturer
Times Microwave
Model #
LMR®-400-75

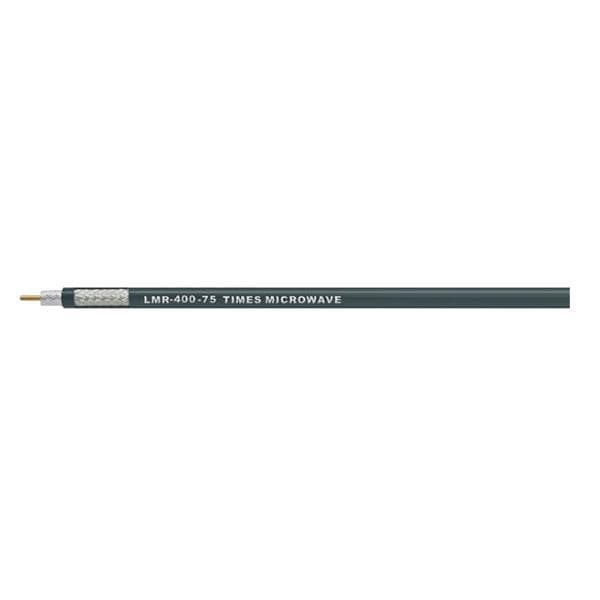

Product Description
TIMES MICROWAVE's LMR®-400-75 DC - 2.5 GHz 3/8 in LMR®400-75 coax cable. 75 Ohm. lower loss than RG11. Uses LMR®400-75 connectors only.
Center Conductor Construction
0.065 in
VOP
85 %
Nominal Capacitance (pF/ft)
15.9
Loss @ 50 Mhz
0.8 dB
Loss @ 100 MHz
1.2 dB
Loss @ 1000 MHz
3.9 dB
Strip Tool
#59664 or 39759
Nominal O.D.
0.405 in
Loss @ 400 MHz
2 dB
Center Conductor Material
Copper Clad Aluminum
Loss @ 900 MHz
3.7 dB
Shield %
Foil Tape & 85% braid
Nominal Core O.D.
0.285
Center Conductor Construction
Solid
