Manufacturer
Times Microwave
Model #
LMR®-600-75
Product Description

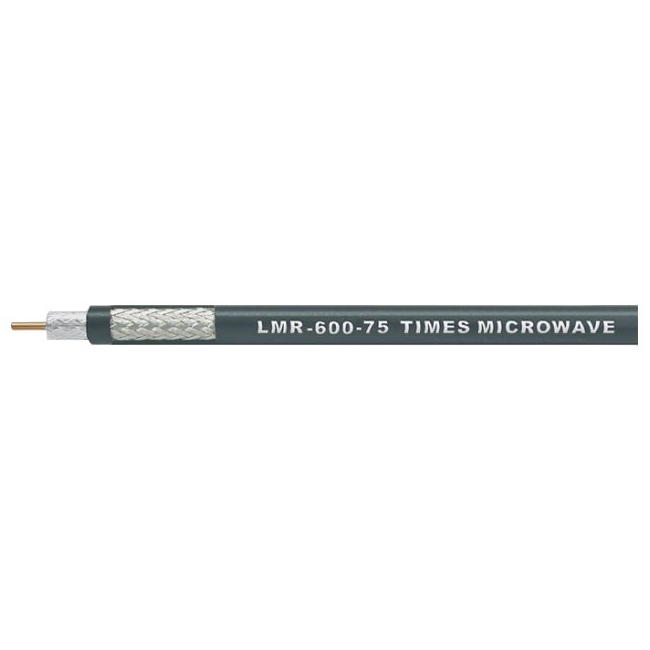

TIMES MICROWAVE's LMR®-600-75 DC - 2.5 GHz 1/2 in LMR®600-75 coax cable. 75 Ohm. lower loss than RG11. Uses LMR®600-75 connectors only.
Strip Tool
435098
Loss @ 100 MHz
0.6 dB
Nominal Capacitance (pF/ft)
15.6
Nominal Core O.D.
0.455
VOP
87 %
Center Conductor Construction
Solid
Center Conductor Material
Copper Clad Aluminum
Loss @ 900 MHz
2.3 dB
Loss @ 1000 MHz
2.5 dB
Loss @ 400 MHz
1.5 dB
Dielectric Insulation
FEP
Shield %
Foil Tape & 85% braid
Nominal O.D.
0.59 in
Center Conductor Diameter
0.108 in
Loss @ 50 Mhz
0.5 dB
