Description
Description
Manufacturer
Belden
Model #
530AP
Product Description

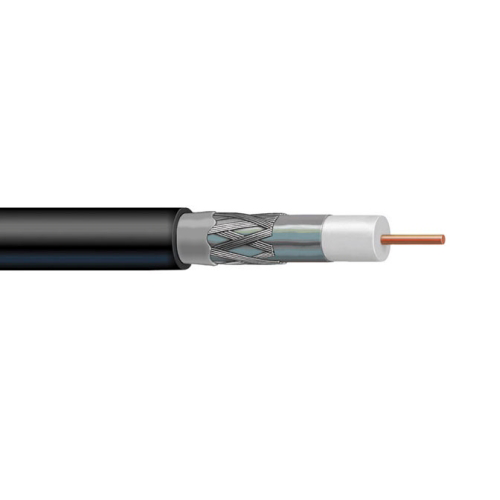

BELDEN's 1530AP RG-6/U plenum rated coaxial cable. 18 gauge copper covered steel center conductor Duofoil and 95% braided shield. Natural Flamarrest jacket. Sold per foot.
VOP
82 %
Strip Tool
#413683, 63427
Loss @ 400 MHz
4.6 dB
Dielectric Insulation
FEP
Nominal Capacitance (pF/ft)
16.2
Center Conductor Construction
Solid
Cable Type
RG-6
Center Conductor Diameter
.040 in
Center Conductor Material
Copper Clad Steel
Nominal O.D.
0.235 in
Loss @ 50 MHz
1.6 dB
Loss @ 100 MHz
2.1 dB
Loss @ 1000 MHz
8.2 dB
Other Spec
Swept 5 MHz - 1 GHz
Loss @ 900 MHz
7.7 dB
Nominal Core O.D.
.170
