Description
Description
Manufacturer
CommScope
Model #
4103904/10
Product Description

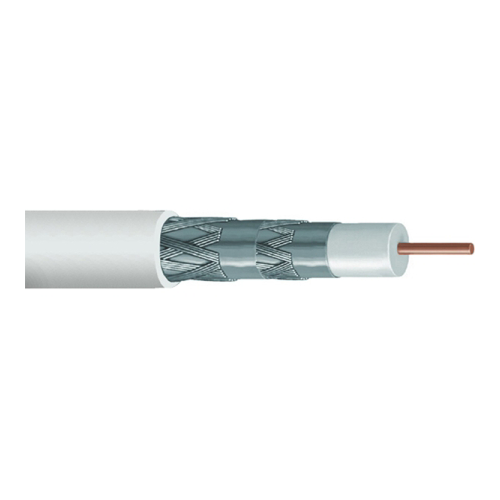

COMMSCOPE's 10 RG-6 type quad shield plenum video coaxial cable, series 6, video, solid, foam FEP dielectric material, 30 lb/kft cable weight, PVC white jacket, 1000 ft (305 m) reel
Nominal Capacitance (pF/ft)
16.0
Nominal O.D.
0.62 in
Center Conductor Material
Copper
Center Conductor Construction
Solid
Nominal Core O.D.
.180"
Loss @ 1000 MHz
7.45 dB
Center Conductor Diameter
0.0403 in
Loss @ 100 MHz
2.01 dB
Loss @ 400 MHz
4.23 dB
Loss @ 50 MHz
1.48 dB
Loss @ 900 MHz
6.96 dB
Dielectric Insulation
FEP
