CommScope ATC200-LITE-USB
Regular price
$44995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
CommScope
Part #
ATC200-LITE-USB
Description

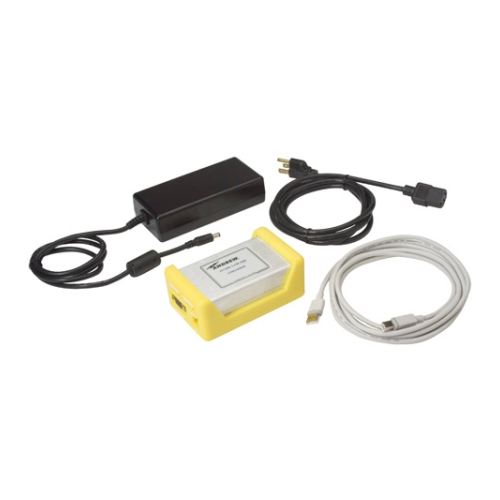

The Andrew Solutions ATC200-LITE-USB Teletilt portable RET controller acts as an interface between your local PC, through USB or COM port, and RET devices that are installed at the base station.
This controller can manage up to 32 RET devices with the use of multiple junction boxes. The controller supports 1.0, 1.1, and 2.0 actuators even in a mixed tree environment. This unit is designed for portable indoor use. The ATC-LITE-USB controller supports Andrew Teletilt devices with the ATC Lite software and COBRA RET devices with COBRA software.
This controller can manage up to 32 RET devices with the use of multiple junction boxes. The controller supports 1.0, 1.1, and 2.0 actuators even in a mixed tree environment. This unit is designed for portable indoor use. The ATC-LITE-USB controller supports Andrew Teletilt devices with the ATC Lite software and COBRA RET devices with COBRA software.
Item Length
5 in
Item Width
3 in
Antenna Control Protocol
AISG 1.1, AISG 2.0
Maximum Power
72 W
Item Height
2 in
Output Voltage
24 V
Temperature Range
-40-55 deg C
