Description
Description
Manufacturer
Mars Antennas
Product Description

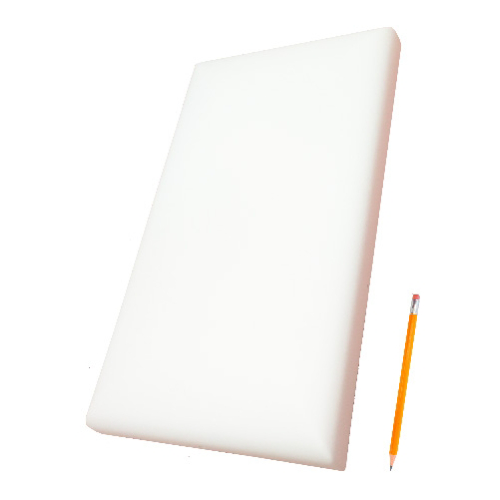

1.7-2.7 GHz Stadium Dual Polarization Antenna
Product Narrative
MARS 1.7-2.2, 2.2-2.7 GHz 33 Degree Vertical polarized Sector Antenna MA-WA22-DP41. 13/14 dBi gain with (2) N Female connectors. Includes Mounting (MNT-22).
Item Length
1.89 in
RF Connectors
N Female
Horizontal Beamwidth
33 deg
Item Height
16.93 in
Lightning Protection
DC Ground
Polarization
Linear, Vertical, Horizontal
Connector Placement
Back
Gain dBi
13 dBi, 14 dBi
Gain dBd
10.9 dBd, 11.9 dBd
Maximum Power
50 W
Maximum Rated Wind Velocity
125 mile/h
Item Weight
5.5 lb
Specific Frequency
1.7-2.2 GHz, 2.2-2.7 GHz
Maximum VSWR
2.0:1, 1.7:1
Item Width
9.45 in
