Manufacturer
Tempo Communications

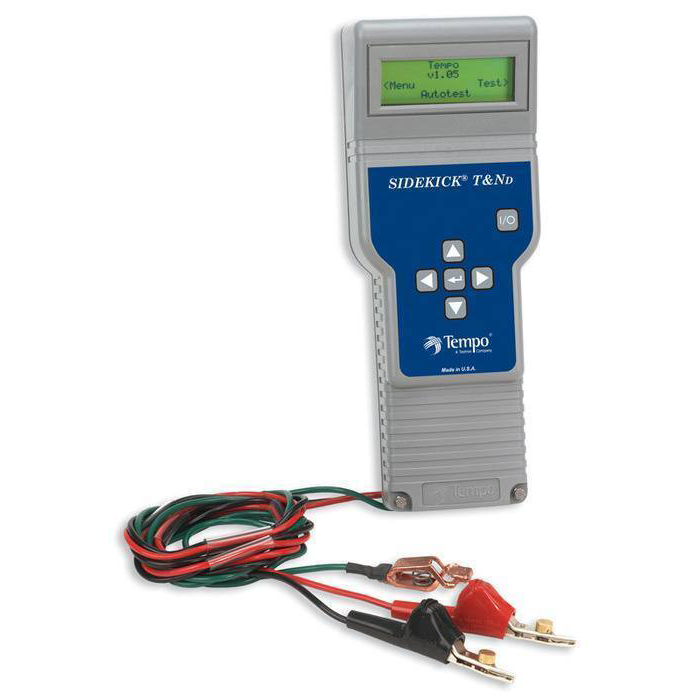

Product Description
- Easy-to-read digital LCD display
- Internal Dialer for making Transmission Test connections
- Autotest – performs 22 individual tests at the touch of a button
- Determines the stressed noise susceptibility of dry and working pairs
- Measures AC/DC Volts, Leakage, resistance, and loop current
- Performs circuit loss, circuit noise (metallic noise), and power influence tests
- Built-in open meter
- Locates up to 4 load coils
- Single set up for Tip-Ring, Tip-Ground, and Ring-Ground tests
- Field replaceable test leads
- On-screen display of “LOW BATTERY” when batteries are near failure
- Patented – Patent # 6263047
AC Voltage
300 Vrms max.
Circuit Loss
+1 to -15 dB
Circuit Noise
0 - 75 dBmC
DC Voltage
± 300 Volts max.
Dimensions
10.750 IN x 4.250 IN x 2.500 IN
Leakage
100 Megohm max.
Load Coil
Up To 4
Loop Current
0 - 100 mA
Open
0 To 60 kft.
Power
Four AA Batteries
Power Influence
40 - 100 dBmC
Resistance
1 Megohm max.
Stress Balance
0 - 82 dBmC
