Paladin Tools 1155-5010

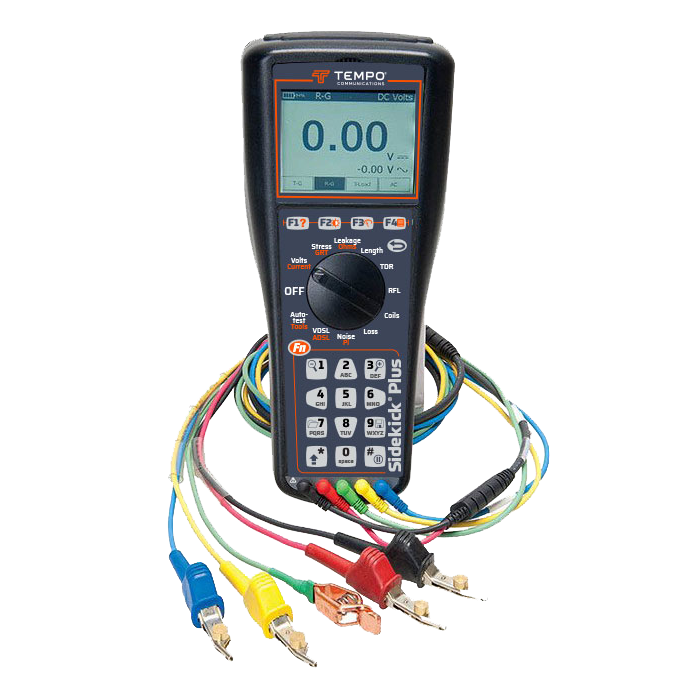

The 1155-5010 Sidekick Plus Wideband and VDSL/ADSL Sync Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services.

Patented – Patent #6263047, 6621562, 7710122, 8232807, 8237459, 2710639, 2282499, 8564302

• Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.
• Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.
• Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.
• No modules needed – Advanced cable diagnosis and troubleshooting in a single test set
• Advanced Dual Trace Pulse TDR (Zero Dead Zone)
• Resistive Fault Locator (Detects up to 20MΩ)
• 1GΩ Leakage Test (Insulation Resistance)
• Longitudinal Balance Test
• Ground Resistance Test
• Quite Line Noise (QLN) Test
• Stress Test
• AC/DC Voltage
• Resistance
• Open Meter
• Loop Current
• Circuit Loss
• Tracing Tone Generator
• Reference Tone
