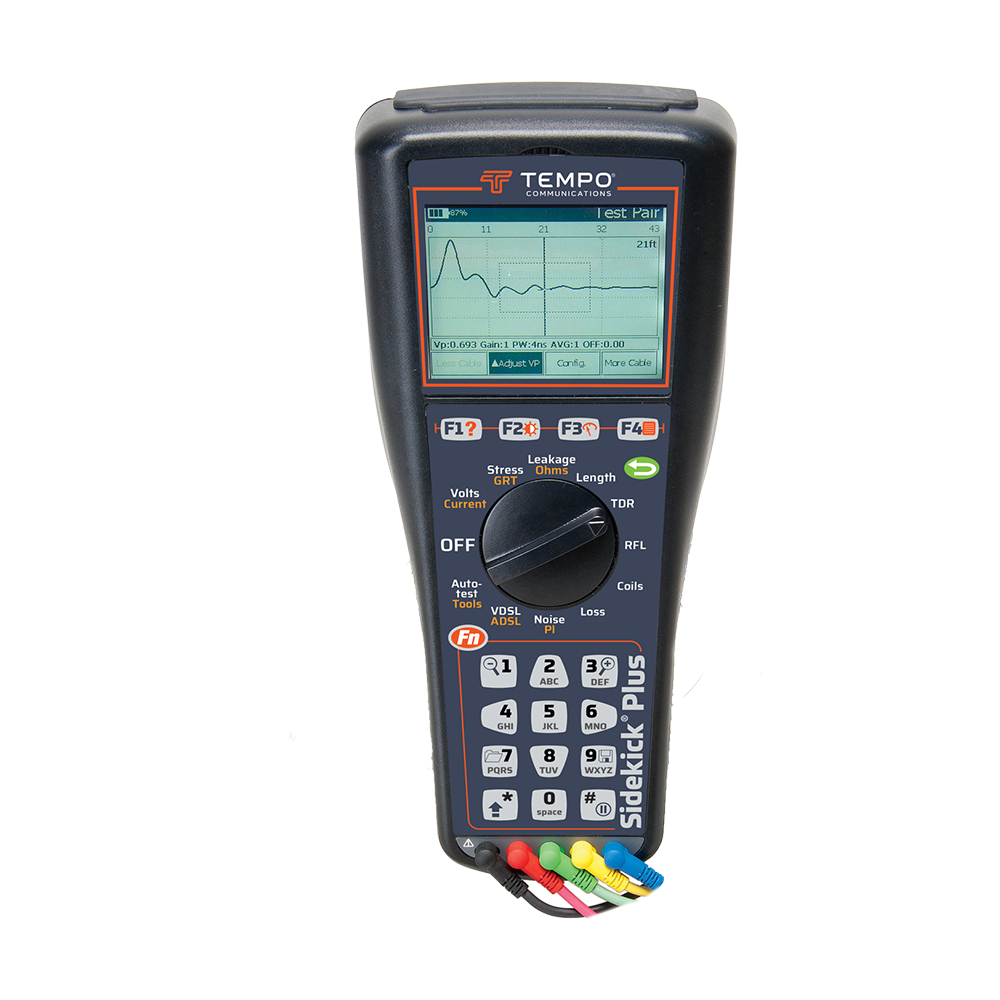

Paladin Tools 1155-5012

The 1155-5012 Sidekick Plus Pair Bonded Modem Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services. The Broadcom bonded and single ADSL/VDSL vectoring modem enables rapid installation without reboots.

Patented – Patent #6263047, 6621562, 7710122, 8232807, 8237459, 2710639, 2282499, 8564302

• Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.
• Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.
• Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.
• No modules needed – Advanced cable diagnosis and troubleshooting in a single test set
• Advanced Dual Trace Pulse TDR (Zero Dead Zone)
• Resistive Fault Locator (Detects up to 20MΩ)
• 1GΩ Leakage Test (Insulation Resistance)
• Longitudinal Balance Test
• Ground Resistance Test
• Quite Line Noise (QLN) Test
• Stress Test
• AC/DC Voltage
• Resistance
• Open Meter
• Loop Current
• Circuit Loss
• Tracing Tone Generator
• Reference Tone
