Paladin Tools 1157-5001

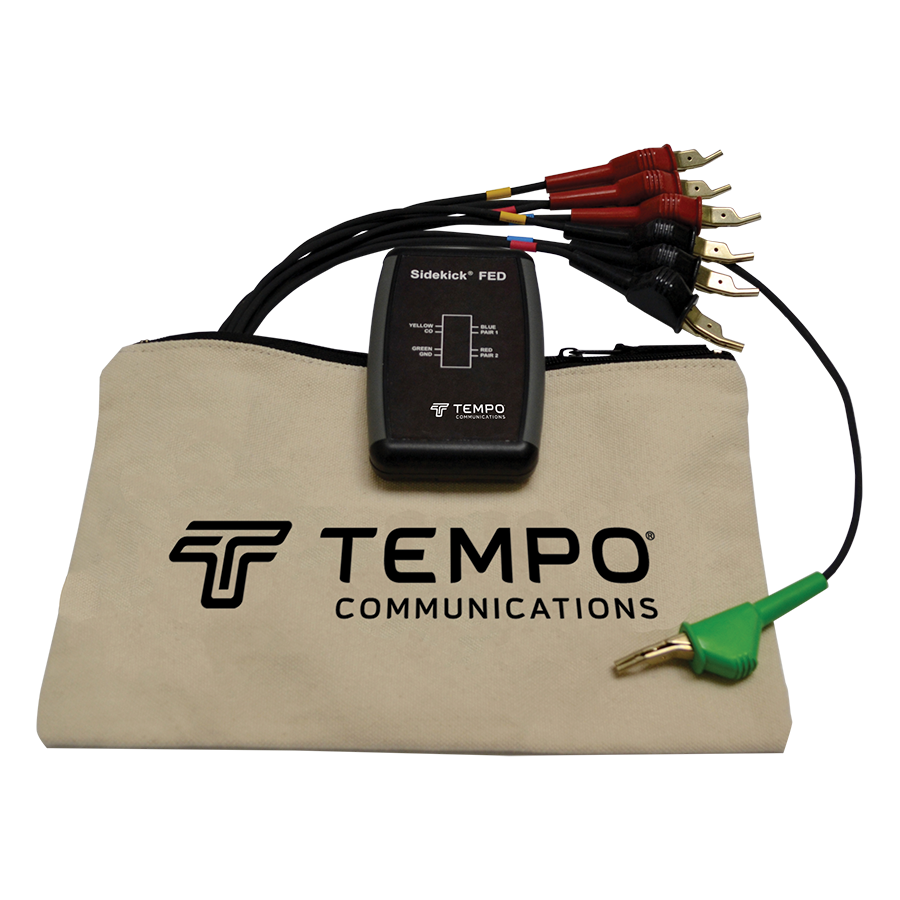

Sidekick® Plus ADSL Far-End Device (FED). For use with the Sidekick® Plus as a complete ADSL testing solution

• K-Test – Far-End-Device straps the pair under test
• TDR – Far-End-Device can alternately short and open the pair to verify the end-of-line
• Noise – Far-End-Device provides a line termination
• Loss – Far-End-Device provides single or multiple reference tones
• Longitudinal Balance – Far-End-Device provides an IEEE 455-1985 Longitudinal Balanced Termination
• Autotest – The Sidekick Plus manages the operation of the Far-End-Device during the test sequence.
• Short Pair – Verifies loop length
• Short Pair to Ground –Determines pair resistive balance
• Remote activation via Sidekick® Plus
• Ability to connect and disconnect Central Office and Customer Premise equipment
• Supports Second Pair Testing
• Generates tones for pair ID and pair tracing
• Capability to generate tones over a range of frequencies from POTS to ADSL
