Description
Description
Manufacturer
Tempo Communications
Product Description
- The LAN PRONAVIGATORTM provides simple PASS/FAIL test results in one second which allows technicians to quickly move on to the next test site.
- Generates oscillating audio tone for use with tone probes to locate cables.
- Tests data and telephone cables up to 320 feet (100 meters) for proper pairing for EIA/TIA-568A, EIA/TIA-568B, Token Ring, 10 Base T, and common Category 5. configurations.
- Tests unshielded UTP and shielded STP data cable.
- Detects good connections, open connections, crossed wires and split pairs.
- Tests common BNC connected 50 and 75 ohm coaxial cables up to 320 feet (100 meters) for continuity.
- Tests coaxial cable types RG58, RG59, RG6, RG6 Quad, Belden 8281, RG8, RG11 and more.
- Belt clips provided and lanyard holes embedded in case to attach to belt or wrist.
- Features low battery test and auto-off function to preserve battery life.
- Includes standard 9V battery.

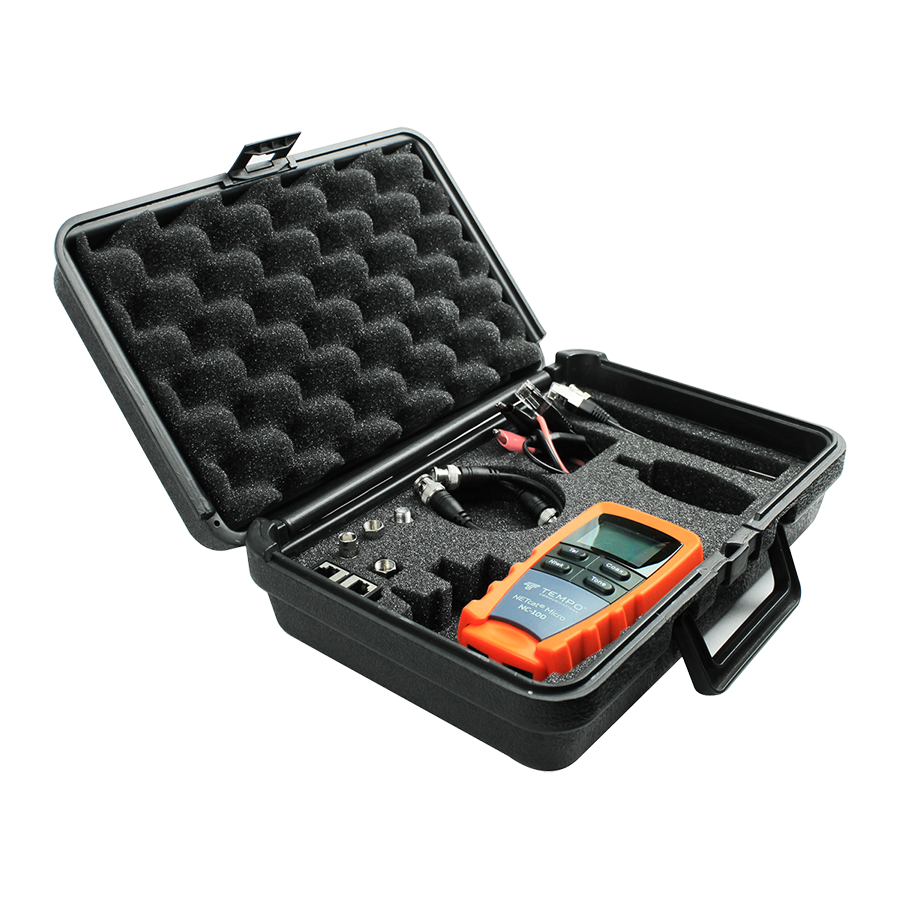

Includes
- 2 RJ45 Patch Cords
- 2 BNC Coaxial Cables
- 2 CATV F To BNC Adapters
- 1 BNC/BNC Adapter
- 1 Shielded RJ45 Coupler
- 2 Belt Clips In Durable Case
Size
8.500 IN (216.000 MM) x 7.600 IN (193.000 MM) x 3.000 IN (76.000 MM)
Sub Brand
LAN ProNavigator
Weight
2.000 OZ (1140.000 G)
