Manufacturer
RF Industries
Description

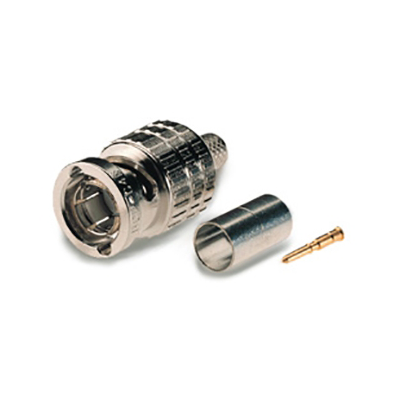

RF INDUSTRIES' RFB-1707-2D 75 Ohm BNC plug, crimp
Works with:
Group D: RG-59, 59 A, 62, 62 A, 62C/U Group D: Alpha 9059, 9062, 9830, 9840, 9845 Group D: Belden 8221, 8241, 9169, 9204, 9228 Group D1: Belden 1462 A, 1505 A, 8241 fiber, 9100, 9110, 9165, 9171, 9240, 9259, 9265, 9274, 9275, 9659 Group D1: CANARE LV-61S Group D1: Commscope 5555, 5560, 5563, 553, 5565, 5552, 5550, 5567, 5571 Group D1: YR2393D
RF Impedance
75 Ohms
Insulator Material
PTFE
RF Connector Body Style
Straight
Center Pin Type
Crimp
Body Attachment
Crimp
Frequency Range
0-4 GHz
Max Voltage/Pwr
500 V rms @ sea level
RF Connector
BNC Male
