MPN: RFB-1707-D
BRAND: RF Industries
PRODUCT TYPE: Connector
SKU: 12590

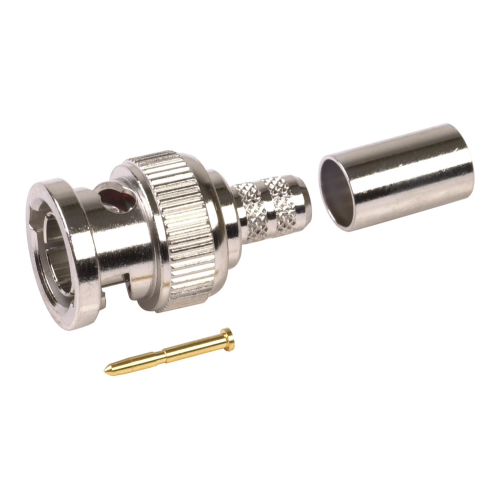

RFI RFB-1707-D

BNC Male RG59 20ga cond 75 ohm

$8⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Diagram

464520 RFB 1707 D+PRODUCT+DRAWING

Description

Manufacturer

RF Industries

Product Description

RF INDUSTRIES' RFB-1707-D BNC Male crimp connector for LMR240-75, BLD 1426A, 1505A, 8212, 8241F,9100, 9110, 9165, 9171, 9240, 9259. Nickel body, gold pin 75 Ohm group D and D1

RF Impedance

75 Ohms

Pieces/UG

3/UG1789U

Pieces/UG

3

Insulator Material

PTFE

For Cable

RG59, BLD 1505A,8221,8241,9204,9659,8212,9110,9240,9265,9275

Strip Shield to End

0.300

RF Connector Body Style

Straight

Center Pin Type

Crimp

Strip Jacket to End

0.625

Material (Pin)

Gold

Frequency Range

0-4 GHz

Max Voltage/Pwr

500 Vrms

Strip Insulation to End

0.125

RF Connector

BNC Male
