MPN: RFB-1707-Q1
BRAND: RF Industries
PRODUCT TYPE: Connector
SKU: 12594

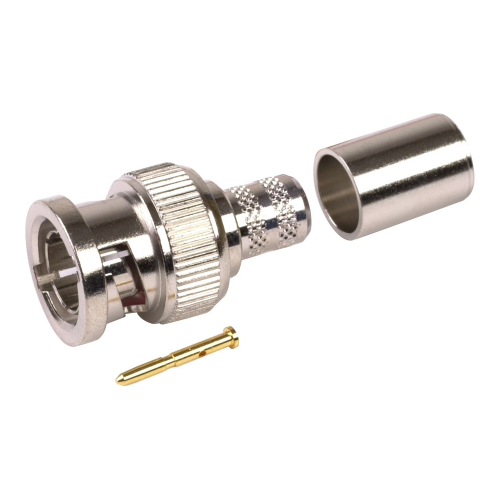

RFI RFB-1707-Q1

BNC Male, RG6/U 75 ohm

$9⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Diagram

488015 RFB 1707 Q1+PRODUCT+DRAWING

Description

Manufacturer

RF Industries

Product Description

RF INDUSTRIES' RFB-1707-Q1 BNC Male connector for RG6/U Plenum. Nickel-plated body, gold pin. Crimp pin and braid. 75 ohm.

RF Impedance

75 Ohms

Insulator Material

PTFE

Pieces/UG

3

For Cable

RG6 Plenum, Belden 1695A, 82120, 82248, 89120, 89248 CommScope 2278, 2278V, 2279, 2279V

RF Connector Body Style

Straight

Center Pin Type

Crimp

Material (Pin)

Gold

Frequency Range

0-4 GHz

Max Voltage/Pwr

500 Vrms

RF Connector

BNC Male

Strip Jacket to End

0.630

Strip Insulation to End

0.157

Strip Shield to End

0.303
