Description
Description
Manufacturer
RF Industries
Product Description

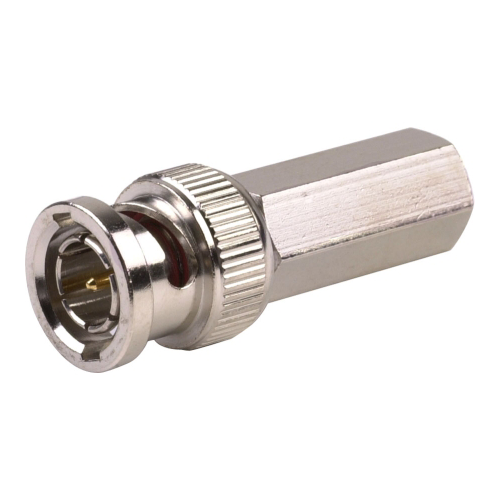

RF INDUSTRIES' RFB-1705 BNC Male twist on connector for RG59, 59A, 59B, 62, 62A, 62B, 62C and 210 cables. Nickel-plated body, gold pin. 75 Ohm.
Install
60981(1),88701(2)
RF Impedance
75 Ohms
For Cable
RG59, 62, 210 (75 ohm)
Pieces/UG
3/UG1789U
Insulator Material
Delrin
Strip Shield to End
0.300
RF Connector Body Style
Straight
Center Pin Type
Captivated
Body Attachment
Screw-On
Strip Jacket to End
0.625
Material (Pin)
Gold
Frequency Range
0-4 GHz
Max Voltage/Pwr
500 Vrms
Strip Insulation to End
0.125
RF Connector
BNC Male
