Description
Description
Manufacturer
RF Industries
Product Description

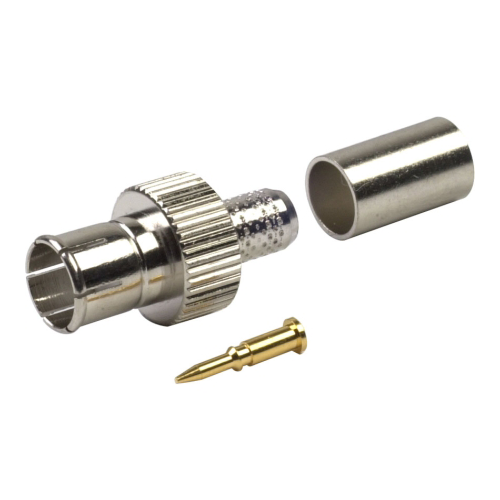

RF INDUSTRIES' RFB-1706-9 BNC Male connector for RG59, 59A, 59B, 62, 62A, 62B, 62C and 210 cables. Nickel-plated body, gold pin .Crimp pin and braid. Quick disconnect.
Install
60981(1),88701(2)
RF Impedance
75 Ohms
For Cable
RG59, 62, 210 (Quick Disconnect)
Pieces/UG
3
Insulator Material
Delrin
Strip Shield to End
0.300
RF Connector Body Style
Straight
Center Pin Type
Crimp
Strip Jacket to End
0.625
Material (Pin)
Gold
Frequency Range
0-4 GHz
Max Voltage/Pwr
500 Vrms
Strip Insulation to End
0.125
RF Connector
BNC Male
