MPN: Y4706
BRAND: Laird TE Connectivity
PRODUCT TYPE: Base Antenna
SKU: 12751

Laird TE Connectivity Y4706

470-490MHz 10.2dB 6 Element Yagi Antenna, 9.2 dB gain 300 W. Direct N Female termination

$339⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

Description

Manufacturer

TE Connectivity

Product Description

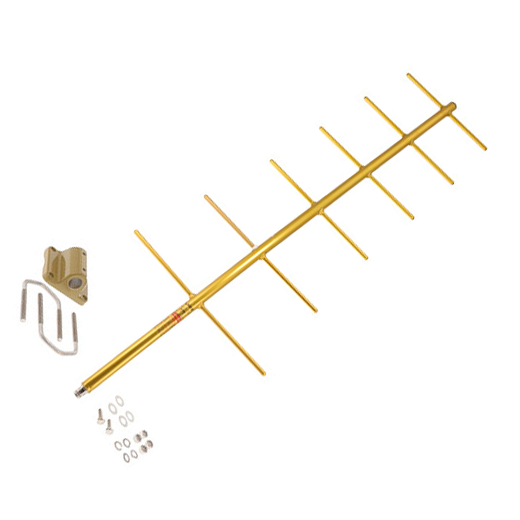

LAIRD's Y4706 470 – 490 MHz 10.2 dB gold Yagi antenna. 9.2 dB gain 300 W. Direct N Female termination. Mounting hardware included. Gold anodized for long life.

Item Length

44 in

Item Weight

3 lb

Tuned Frequency (MHz)

470-490

RF Connectors

N Female

Maximum Rated Wind Velocity

100 mile/h

Specific Frequency

470-490 MHz

Maximum Power

300 W

Gain dBi

12.3 dBi

Vertical Beamwidth

57 deg

Jumper Included

No

Maximum VSWR

1.5:1

Type of Hardware Included

Clamp set

Horizontal Beamwidth

72 deg

Gain dBd

10.2 dBd

Lightning Protection

DC Ground

Polarization

Linear

Warranty

5 Year
